SOL-S6-EH3P15K-NV-YD-L
  • SOL-S6-EH3P15K-NV-YD-L

SOL-S6-EH3P15K-NV-YD-L

SOL-S6-EH3P15K-NV-YD-L
Solis

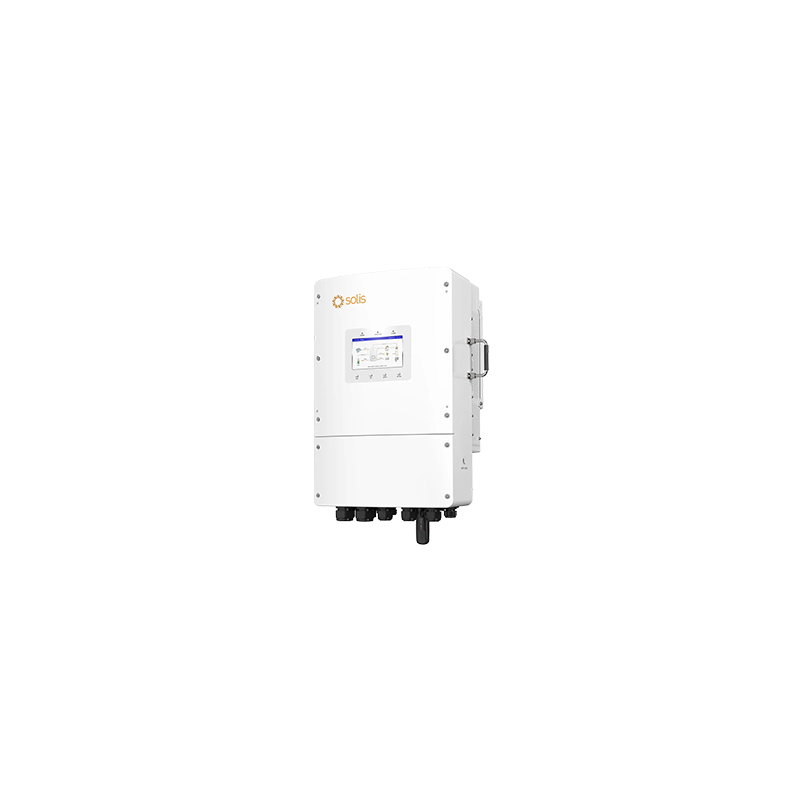

S6 15KW three phase low voltage hybrid inverter
€2,648.15
VAT included
Quantity
103 Items

Description

The Solis Series 6 Hybrid Inverter range offers advanced functions that are suitable for meeting and excel in the sunscreen market. SMART LCD display and Bluetooth Quick set in less than 5 minutes (no WiFi required), generator integration and so much more.

Features:

  • PV allowed to 24kW, on the MPPT of 200-1000V.
  • 2-MPPTS, assessed on 40A each, with 3-string inputs that allow 3 strings of 20A High Power / Current PV modules possible.
  • Generator connectivity with automatic on / off control.
  • Parallel to 6 inverters for up to 90 kW of backup.
  • 10 seconds, 200% Surge Power Backup overloading capacity.
  • 24-hour real-time intelligent energy management - Bluetooth / Wi-Fi / app.
  • Continuous food with 10 MS response time.
  • Comes with a Wi-Fi / LAN data logger A
  • 5 year warranty - Extendable up to 10 years.

Sa:

  • NRS 097 certified but pending COCT approval.

Please note: this inverter is now certified for Belgium !!

Special offer!

Sol-s6-eh3p15k-pyl-fidus-pro 10.24 Energy Storage Package - Pylontech Fidus PRO 2X 5.12 LV Battery module and Solis S6-EH3P15K-NV-YD-L-L
Sol-s6-eh3p15k-pyl-fidus-pro 15.36 Energy Storage Package - PylonTech FIDUS PRO 3X 5.12 LV Battery module and Solis S6-EH3P15K-NV-YD-L-L

Product Details
Solis
SOL-S6-EH3P15K-NV-YD-L
103 Items
Supplier Part No:
S6-EH3P15K02-NV-YD-L (Display)
Weight:
42 kg
Rated Power:
15,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
850 V
DC Startup Voltage:
200 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,000 V
Max DC Power:
24,000 W
Max AC Power (5 Minutes):
15,000 W
Surge AC Power (1 Second):
30,000 W
Max DC Current:
80 A
Max DC Inputs:
4
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97 %
Transformer:
hf
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
