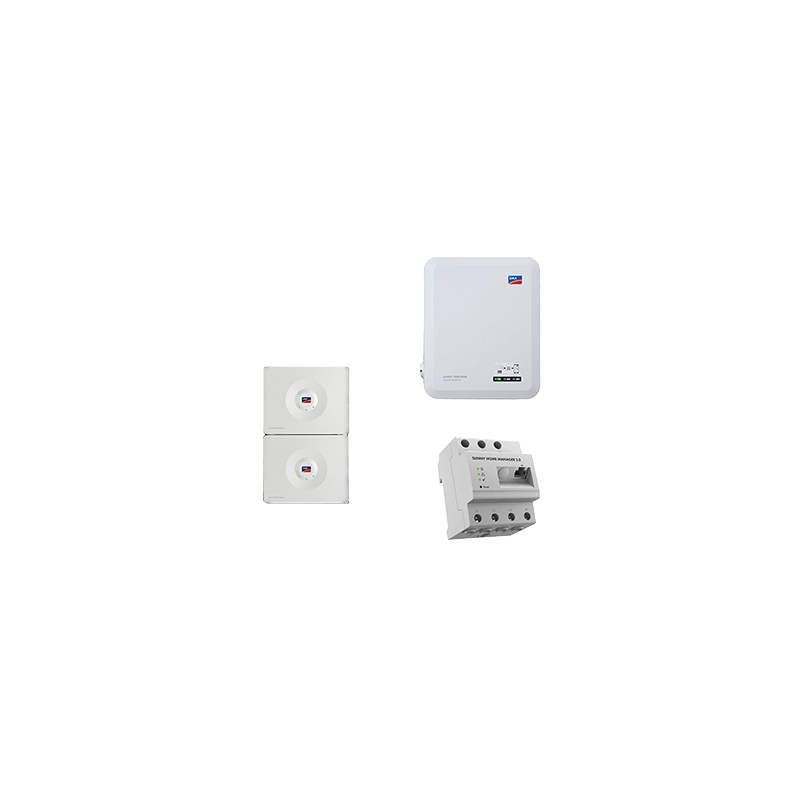

Home Storage 6.5 + Sunny Tripower SE 5.0

The fist on the eye, like pot and lid-There are some talk types that describe an ideal together. In our PV world SMA now adds this list with-Smart Energy + Home Storage-Because the combination of 1- and 3-phase hybrid series with the new high voltage storage is a perfect match-A dot landing. The compact power packets shine with integrated BMS and up to 8000 charging cycles for a quick installation and intensive use. With up to 5 battery modules-3.2 kWh are total of 16.4 kWh usable storage power Fary every energy situation.

Produktvorteile:

? 1a networking through uniform manufacturers

? AC + DC-Version Protection Type 2 integrated

? 8000 charging cycles and 10 years warranty after registration of the memory

Product features System:

? AC Power: 5.0 kW

? Number of mppt: 2

? Input voltage: 210-800 V DC

? AC connection: 3-phase

? Topology: Trafolos

? Communication: Wi-Fi, Ethernet, CAN

? Interfaces: 5 x di (FRE), 1 x do

? Protection class: IP65

? Celebration: passive

? Weight: 30,0 kg

? Dimensions: 500 x 598 x 173 mm (W x H x D)

Product features Memory:

? Capacity (usable): 6.56 kWh

? Output voltage: 192 V

? Max. Power / unloading current: 36 A

? Cell Chemistry: LFP (lithium-iron phosphate)

? Time window extension: up to 2 years

? Site: Indoor / Outdoor

? Assembly: wall (included), floor (to be ordered separately)

? Protection class: IP65

? Celebration: passive

? Dimensions: 610 x 969 x 215 mm (W x H x D)

? Weight total: 76.0 kg

Conclusion:

? Everything from one source-Plus-SMA-Stain is a complete assortment and reliable quality.

Delivery:

? 1 x SMA SUNNY TRIPOWER SE 5.0 (Article 0150367)

? 1 x SMA Home Manager 2.0 (Article 0126650)

? 2 x SMA Home Storage Storage (Article 0154631)
