HELIVOR HV 16.0+ PLENTICORE L G3
  • HELIVOR HV 16.0+ PLENTICORE L G3

HELIVOR HV 16.0+ PLENTICORE L G3

0162697
HELIVOR HV 16.0+ PLENTICORE L G3
€9,004.14
VAT included
Quantity

Ask about the product on WhatsApp
Description

Product information "Helivor HV 16.0+ Plenticore L G3"

The 3 Plenticins that can be activated for activating the memory function must be ordered separately.

With the Plenticore G3 series, Kostal expands its flexible portfolio around the Plenticoin. This in-house currency for the activation of device power and functions is also used here. Thus, the inverters in 3 device variants S, M and L are delivered with a basic capacity of 4 to 15 kW. PLENTICOINS can be used to enable 2 pale performance classes, memory usage and the intelligent connection of the EV charger. At any time. The 3 device versions are thus expressive of a nearly universal application for reduced storage requirements. The installation of the new Helivor high-voltage storage is more than just supple thanks to the screw and wireless stack design. With minimal space requirements, up to 9 memory modules with 28.8 kWh usable capacity are implemented per unit. The maximum position 8 parallel coated with total 230.4 kWh. The field of application is thus residential to small commercial systems.


Produktvorteile:
? Activate performance and functions as needed using Plenticoins
? 17 (S + M) / 30 (L) A input current per mpt
? Full backup with switching device
? Screw and wireless stack design
? Total capacity up to 230.4 kWh ease

Product features System:
? AC-based power: 15.0 kW
? AC service extension Level 1: 17.5 kW
? AC service extension Level 1: 20.0 kW
? Info times: 3
? AC mains voltage: 400 V
? Number of mppt: 2 + 1 (PV / BAT)
? Max. Input voltage DC: 1000 V
? DC plug type: Sunclix
? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out
? Protection class: IP65
? Celebration: active
? Dimensions: 561 x 409 x 237 mm (H x W x D)
? Weight: 24.3 kg

Product features Memory:
? Battery capacity usable: 16.0 kWh
? Storage Type: Tall Voltage
? Rated voltage: 320 V
? Time window extension: unlimited
? Number of memory modules in one unit: 2-9 memory modules
? Number of units parallel: up to 8 heat
? Cell chemistry: LFP
? Communication: CAN 2.0A, RS485, Ethernet, WiFi
? Celebration: passive
? Protection class: IP65
? Dimensions: 1240 x 450 x 296 mm (HxWxD)
? Weight: BMS + socket: 30.0 kg, 5 x memory per 36.0 kg


Activities using Plenticoins:

Plenticore G3 Series:
Return to a performance class (1 stage) within the device series S / M / L: 1 Plenticoin
Retention to the maximum power (2 steps) within the device series S / M / L: 1 + 1 Plenticoin
Activation of the memory function: 3 Plenticoins
Activation of the comfort function Fär The Enector Wallbox: 2 Plenticoins

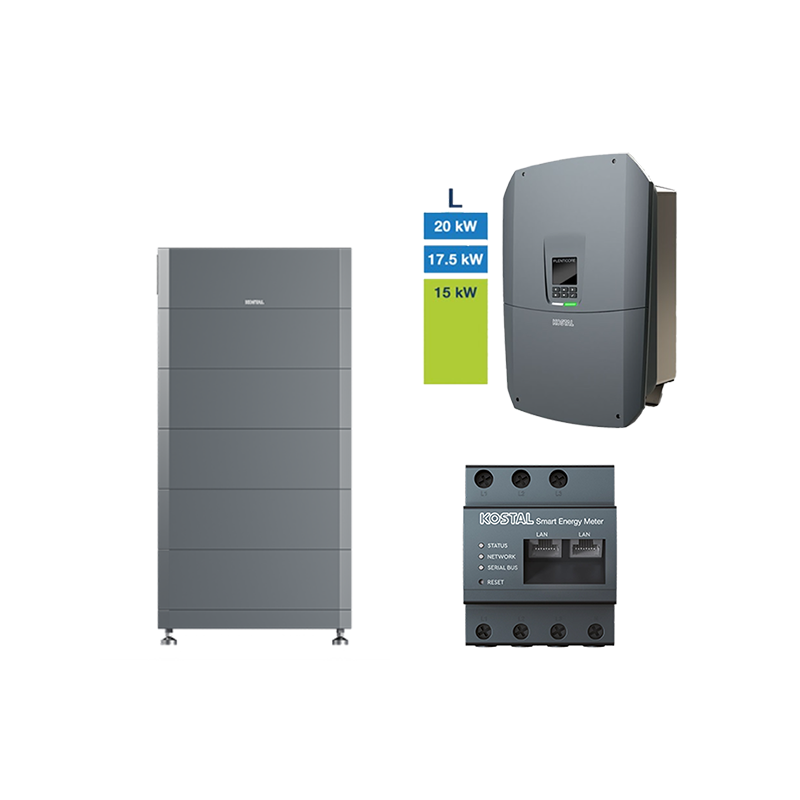

Delivery:
? 1 x Kostal Plenticore L G3 Hybrid-WR (Article 0155067)
? 1 x Kostal Helivor HV Battery Management System (Article 0162408)
? 5 x Kostal Helivor HV 3.2 Memory Module (Article 0162409)
? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)

Important technical data

Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous Goods Weight (net) (kg) 110.000
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
Product Details
0162697
