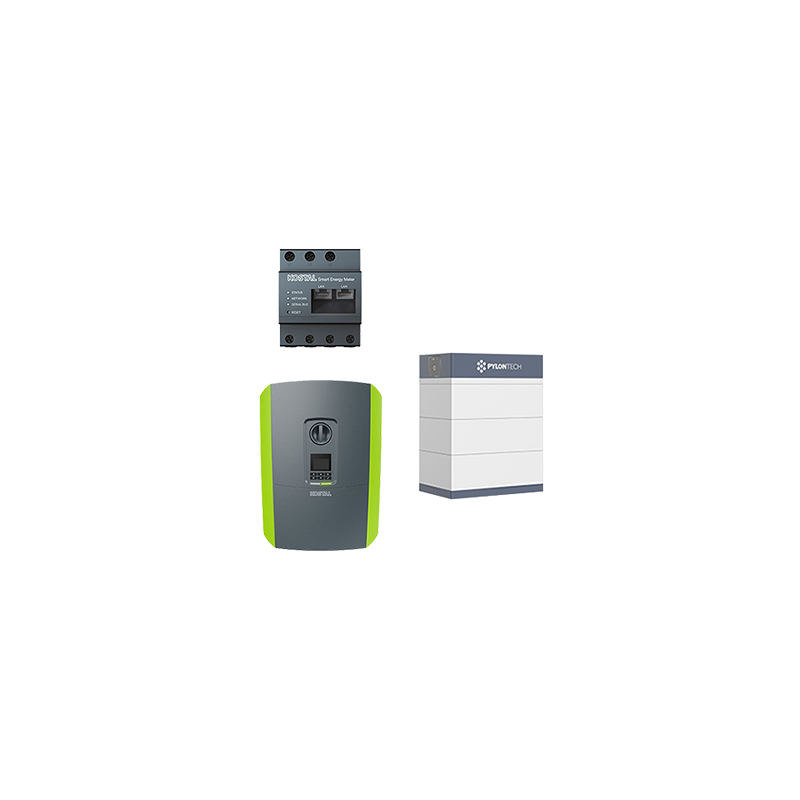

Force H3 14.7 + Plenticore Plus 8.5 G2

Compact, reliable, and powerful - this description applies to all components of this high-voltage storage package. The proven hybrid inverters of the Kostal Plenticore Plus G2 series are combined with the new Force-H3 storage units from Pylontech. With their proven and efficient stackable design, modeled on the H1 + H2 series, these powerhouses always find a place. With their expandable battery modules with up to 34.01 kWh of usable capacity, they are the ideal complement to the Plenticores and are ideally suited for applications in the home and small commercial sectors.

Product advantages:

? 13 A input current per MPPT

? Easy network connection between units as a daisy chain

? Storage with efficient, compact stackable design

Product features System:

? AC rated power: 8.5 kW

? Feed-in phases: 3

? AC mains voltage: 400 V

? Number of MPPT: 2 + 1 (PV / Bat)

? Max. DC input voltage: 1000 V

? DC connector type: Sunclix

? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

? Protection class: IP65

? Cooling: active

? Dimensions: 563 x 405 x 233 mm (H x W x D)

? Weight: 17.86 kg

Product features Storage:

? Battery capacity (usable): 14.73 kWh

? Depth of discharge (DoD): 95%

? Time window extension: up to 2 years

? Cell chemistry: LFP

? Nominal voltage: 307.2 V

? Protection class: IP55

? Dimensions: 700 x 540 x 350 mm (H x W x D)

? Weight: BMS + base: 14.0 kg, 3 x storage units, 39.0 kg each

Activation using PLENTICOINs:

Activation of storage function: 1 PLENTICOIN

Activation of Wallbox Smart Features: 2 PLENTICOINs

Scope of delivery:

? 1 x Kostal Plenticore Plus 8.5 G2 hybrid inverter (item 0152314)

? 1 x Pylontech H3 BMS (item 0159943)

? 3 x Pylontech Force-H3 storage module (item 0154119)

? 1 x Kostal KSEM G2 smart meter (item 0151118)
