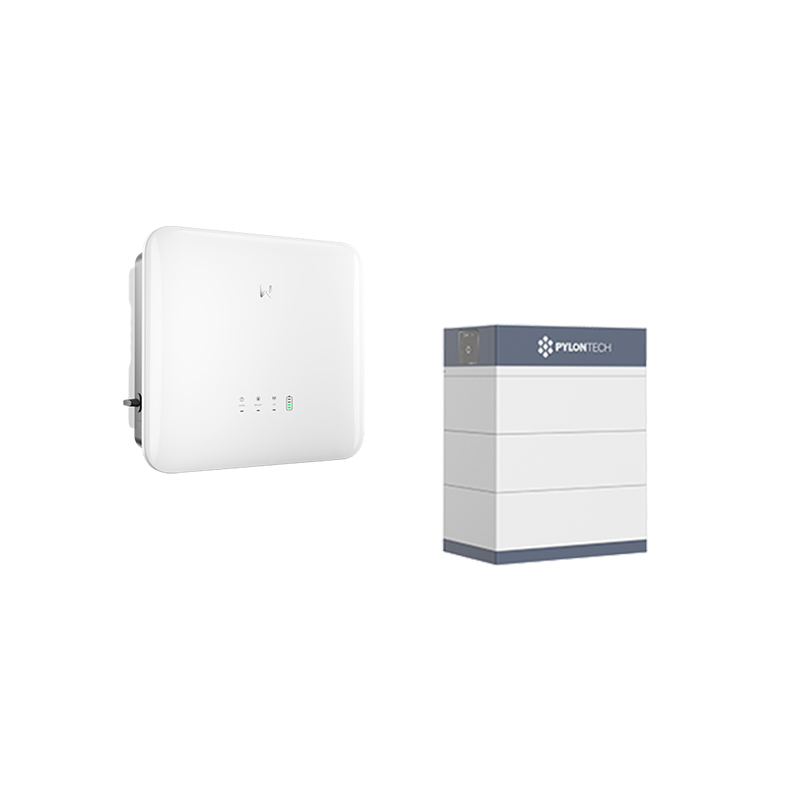

Force H3 14.7 + GW15K-ET-20

The 2nd generation of the Goodwe ET-20 Hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET + series received supplements and improvements in many places. With the well-known 16 amps input current per MPP Tracker can be connected to all current module series. With integrated smart meter incl. 3 CTS and communication dongle as well as AC + DC-Surgerine protection and AFCI arc detection, the equipment is complete. The proven backup connector provides uninterrupted selected circuits. The new Force H3 storage systems from PylonTech points according to the model of H1 + H2 series with proven and efficient stack construction. With its expandable battery modules with up to 34.01 kWh usable capacity you are ideally suitable for the home and small commercial area applications.

Produktvorteile:

? Emergency stream with UPS function

? 16 A input current per mpt

? 3 x CTS + WiFi-LAN dongle with Cyber Security included

? Efficient, compact stack construction

Product features System:

? AC nominal power: 15.0 kW

? Info times: 3

? AC mains voltage: 400 V

? Number of Mpp Tracker: 3

? Max. Input voltage DC: 1000 V

? AFCI arc recognition: Yes-Version 3.0

? DC - Surveillance protection: Type 2

? AC- Overlay protection: Type 2

? Storage Type: Tall Voltage

? Replacement current capable: Yes, about EPS connection

? Interfaces: RS485, CAN, WiFi, LAN

? Protection class: IP66

? Celebration: passive

? Dimensions: 460 x 496 x 221 mm (HXBXT)

? Weight: 25.0 kg

Product features Memory:

? Battery capacity (usable): 14.73 kWh

? Discharge depth DOD: 95%

? Time window extension: up to 2 years

? Cell chemistry: LFP

? Rated voltage: 307.2 V

? Protection class: IP55

? Dimensions: 700 x 540 x 350 mm (HxWxD)

? Weight: BMS + socket: 14.0 kg, 3 x memory per 39.0 kg

Delivery:

? 1 x Goodwe GW 15K-ET-20 Hybrid-WR (Article 0160692)

? 1 x PylonTech H3 BMS (Article 0159943)

? 3 x PylonTech Force-H3 memory module (Article 0154119)
