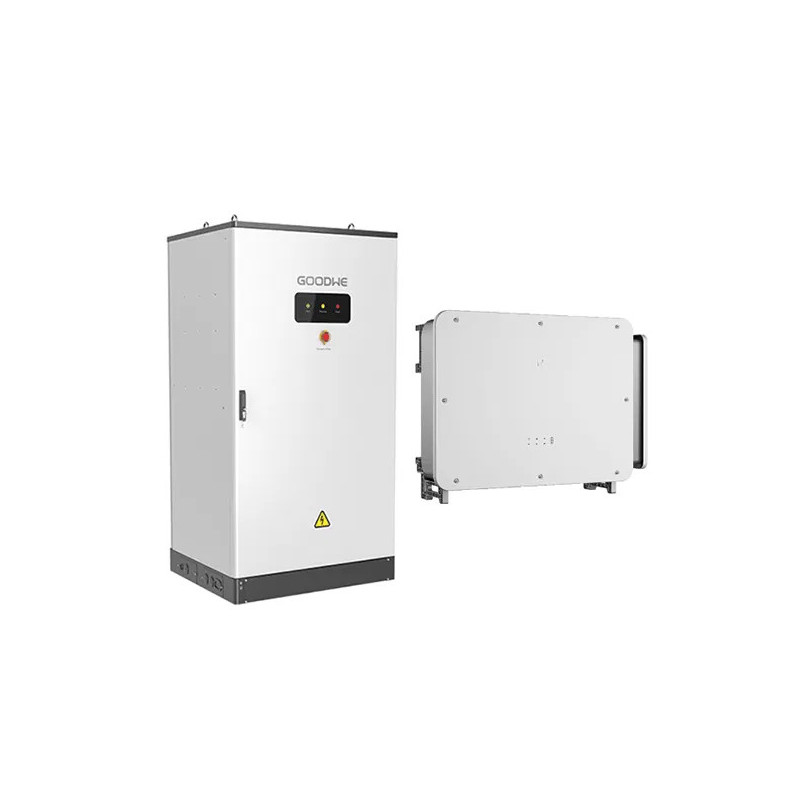

Lynx C LX C120-10 + 50K-ET-10

Name: Lynx C LX C120-10 + 50K-ET-10
Brand: Techmediashop
SKU: 0161588
Price: 42679.27 EUR
Availability: BackOrder

Reference 0161588

€42,679.27

VAT included

Quantity

Variants:

Description

Scope of Delivery:

• Goodwe GW100K-ET-G10 Hybrid Inverter (Item 0163065)

• Goodwe GW112.6-BAT-AC-G10 Commercial Storage (Item 0161781)

Important technical data


Dangerous Goods Weight (Net) (kg)	990.000
Dangerous Goods Transportation Category	2
Dangerous Goods Description	Lithium Ion Batteries
Tunnel Restriction Code	(I)
Classification Code	M4
Dangerous Goods Class	9
Dangerous Goods Packaging Type	4g
UN no.	3480

Product Details

Reference 0161588

Topology	transformerless
Max. AC power (kVA)	110.00
Max. generator power DC (kWp)	200.00
Backup system full	yes with supply
Start input voltage (V)	200
Number of independent MPPT (pcs)	8
Max. short circuit current (A) total	440.00
Max. input voltage DC (V)	1000.00
Max. output current (A)	167.20
Surge protection AC	type 2
European efficiency (%)	97.50
MPP max. voltage range input (V)	950.00
Capacity extendable later	yes without restriction
Commercial system	yes
Display	w/o display
Min. temperature ambient (°C)	-20
Battery cell chemistry	LFP
MPP min. voltage range input (V)	160.00
AC nominal power (kW)	100.00
Max. efficiency (%)	98.10
Integrated DC switch	yes
Total number of string inputs	16
Max. input current DC (A) total	336.00
Protection degree	IP55
Usable capacity (kWh)	110.00
Max. short circuit current per MPPT (A)	55
Arc Fault Circuit Interrupter	yes
Max. input current per MPPT (A).	42
