FPXDH10TTAM1

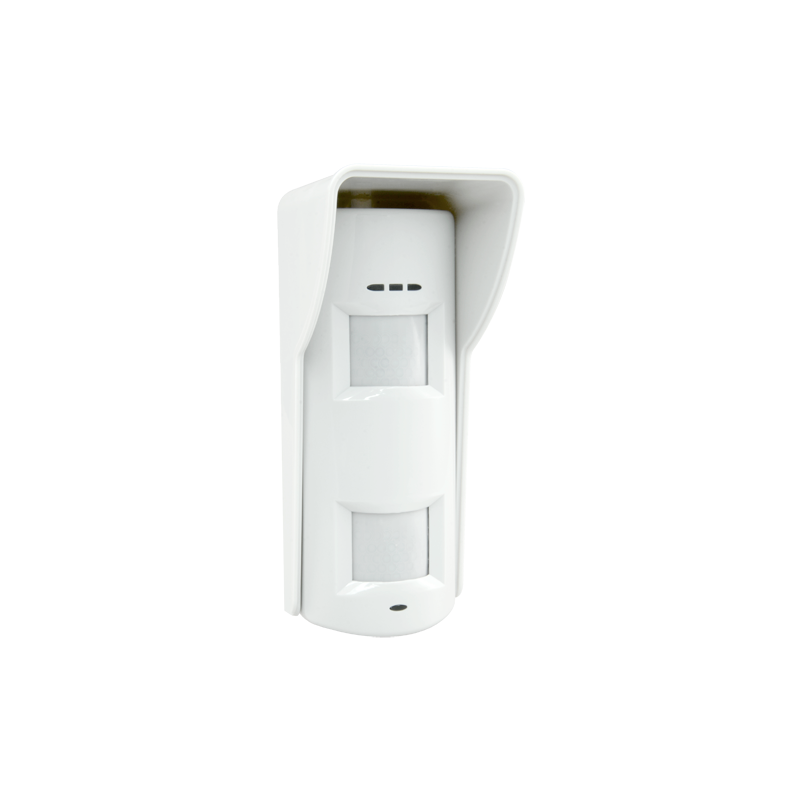

Pyronix high-security volumetric PIR detector. Wired, triple pet immune technology and suitable for outdoor.

Wired motion detector, especially designed to cover outdoor areas. Effective and safe detection due to its triple technology: 2 passive infrared dual sensors with low noise and 1 Doppler microwave unit operating in an intelligent and coordinated manner to avoid usual false alarms outdoor.

It is a high protection device with certificate 2, that incorporates multiple improvements that increase the system security:

• Long Range PIR detection with 78 zones and 5 planes
• Extensive coverage (10 m in 90º for H = 2.4 m)
• Pet immunity (≤ 10 Kg for HP = 2.4 m)
• Adjustable anti-masking technology that protects the 3 sensors
• UV filters to avoid reducing performance
• Automatic compensation of ambient temperature
• 3 of different microwave frequency bands to avoid interferences
• Detection speed 0.25~2.5 m/s
• System that avoids the influence of wind and vegetation
• Locking system to prevent obstructions to the detector
• Double tamper anti-opening

In addition to its high reliability, it has several advantages regarding use and installation as LEDs for easy configuration, the buzzer for test ride, PIR masks lens with grid or triple rolling resistance system by jumper that allows to tend a single cable for Alarm (3 outputs), Antimasking and Tamper.

Polycarbonate housing with visor suitable for outdoor. Various wall brackets available.
