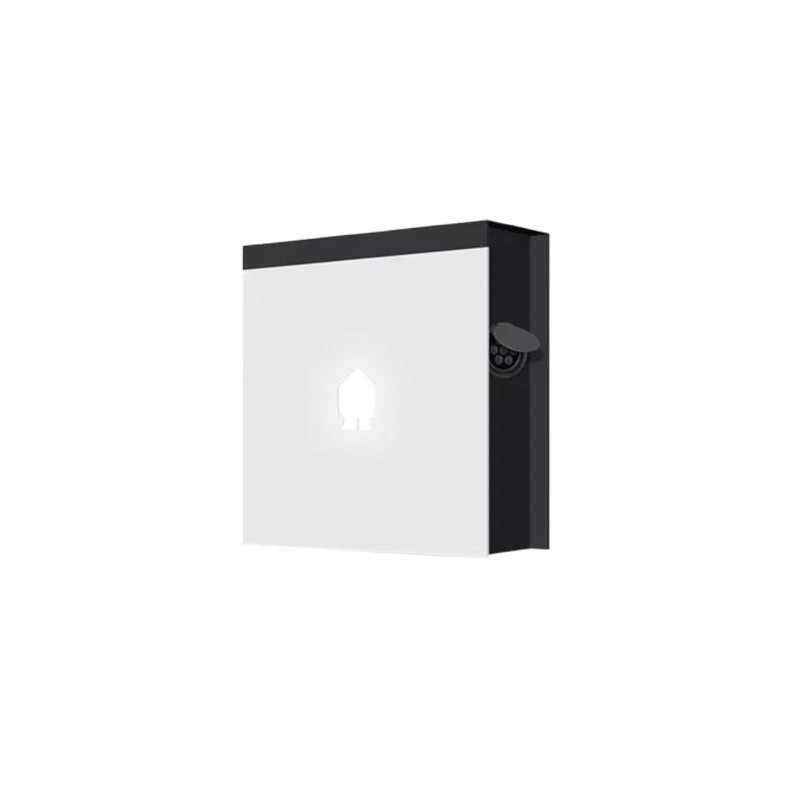

EV Wall Eichrecht, 22 kW

The Smappee EV Wall Home is a smart charging station for electric vehicles with one connection. It impresses with its user-friendly installation, which is quick and easy thanks to simple cable configuration and an installation wizard. The EV Wall Home is available with a charging socket and supports various payment options. The EV Wall Home package includes a 5-year subscription to the Smart subscription plan, which offers advanced features. There are also additional add-ons available as optional extras.

Product advantages:

• Intelligent charging station

• User-friendly installation

• Supports various payment options

• EV Wall Home package and optional add-ons

• Connection in accordance with EnWG § 14a via external accessories

Product features:

• Max. charging power per charge point: 22 kW

• Access control: RFID (cards must be ordered separately), QR-code

• AC grid voltage: 230 / 400 V

• Feed-in phases: 3 -phase

• Phase switching: yes, with Infinity Kit (0159658)

• MID meter: yes

• Calibrated: no

• Compliant with ISO 15118-2: no

• Compliant with EnWG § 14a: yes (with Infinity Kit (0159658) / SG Ready Module (0161749))

• Interfaces: Wifi, Ethernet

• Protection class: IP54

• Dimensions: 110 x 300 x 300 mm

• Weight without packaging: 7.3 kg
