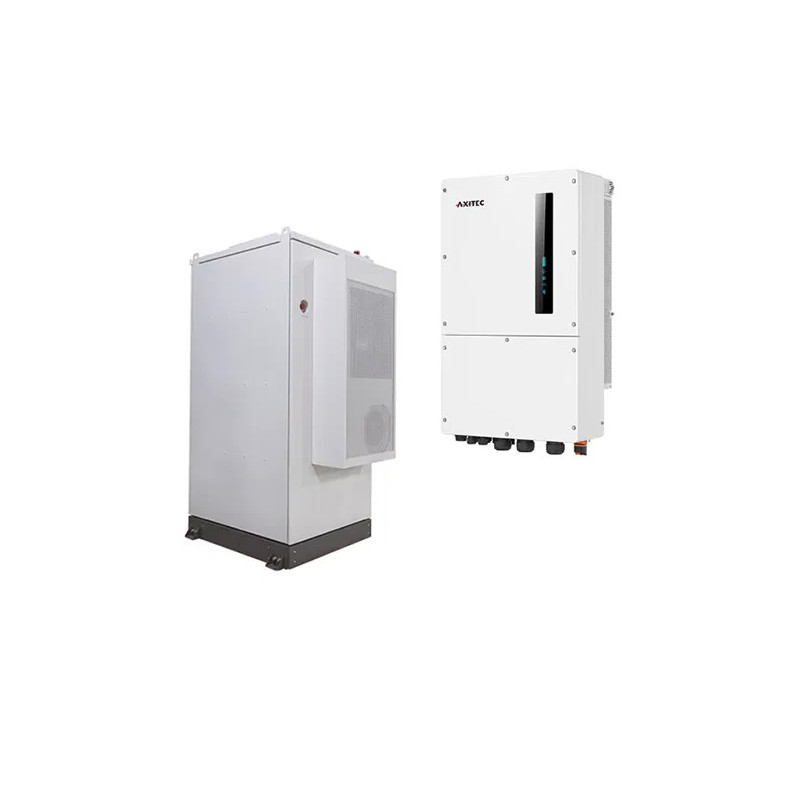

BYD Max Lite 60 + AXIhycon 50H

The new Commercial Power Bundle from Axitec and BYD is pure flexibility. The multi-cascadable AXIhycon hybrid inverters from 29.9 to 50 kW are combined with the Max Lite commercial storage system with up to 12 storage modules of 7.5 kWh each. Two separate storage connections, up to 40 amps of input current per MPP tracker, as well as integrated arc monitoring and Type 2 surge protection leave little to be desired. A UPS-level backup function also adds further advantages.

Product advantages:

• Up to 40 A DC input current

• Up to 4 MMP trackers

• 2 separate storage connections with 70 A charging current each

• Integrated AFCI and DC surge protection Type 2

• Backup with UPS level

• Storage capacity up to 90.0 kWh possible

System product features:

• AC power: 50.0 kW

• AC connection: 3-phase

• Number of MPPTs: 4

• Connections per MPPT: 2

• Input current: 40 A per MPPT

• DC connection: MC4

• Storage connections: 2 with 70 A charging current each

• Communication: Wi-Fi, Ethernet, CAN, RS485

• Protection class: IP66

• Cooling: active

• Weight: 73.0 kg

• Dimensions: 530 x 880 x 290 mm (W x H x D)

• Energy meter + Wi-Fi/LAN data logger included with inverter

Storage product features:

• Capacity (usable): 60.0 kWh

• Storage type: High-voltage

• Expansion time frame: Unlimited

• Number of storage modules in one unit: 4 to 12

• Cascadable units: up to 32 in parallel

• Cell chemistry: LFP

• Communication: CAN, RS485, Modbus TCP

• Cooling: Air conditioning

• Protection class: IP55

• Cabinet dimensions: 1400 x 1100 x 2100 mm (L x W x H)

• Weight: Cabinet 400.0 kg, 8 storage modules 75.0 kg each

Conclusion:

When looking for the ideal system component for your new commercial space, you should definitely have this combination at hand.

Scope of delivery:

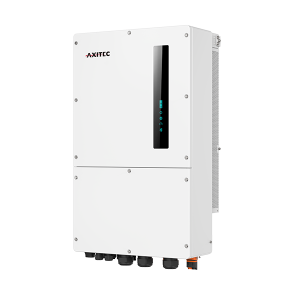

• 1 x AXIhycon 50H Hybrid Inverter, including meter (item 0156903)

• 1 x BYD Max Lite Cabinet (item 0158915)

• 8 x BYD Max Lite storage modules (item 0158908)
