BYD HVM+ 8.3 + PLENTICORE PLUS 5.5 G2
  • BYD HVM+ 8.3 + PLENTICORE PLUS 5.5 G2

BYD HVM+ 8.3 + PLENTICORE PLUS 5.5 G2

0162266
BYD HVM+ 8.3 + PLENTICORE PLUS 5.5 G2
€6,119.16
VAT included
Quantity
25 Items

Ask about the product on WhatsApp
Description

Product information "BYD HVM + 8.3 + Plenticore Plus 5.5 G2"

The Plenticoins which can be ordered for the performance and functional release are to be ordered separately.
The combination with components of the HVS predecessor series is not ease.
For commissioning, the new BYD ENERGY APPT is a current firmware (AB V1.28.0) Required.
The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.

HVS + / HVM + and Kostal: Released by the manufacturers on both sides

A true veterinarian memory packages: Kostal Plenticore Plus G2 and BYD HVM. Fair the latest generation of the HVM high-voltage storage of BYD is now also one? +? for this purpose. The proven properties and key data has been used in the new HVM + an improved BCU. This can be flexibly used for the memory modules of HVB, HVS + and HVM + series. The new automatic SOC balancing optimizer makes the manual adjustment of the loading stand with initial installation and extension-The-Crafted BCU connection management with connectors on the performance and communication level saves additional valuable time during installation. Not about one of our top combination in our wide portfolio of storage packages.

Produktvorteile:
? Proven and powerful storage package
? Automatic Soc Balancing with initial installation or extension
? Faster cable installation by connector
? Storage continuously expandable time

Product features System:
? AC nominal power: 5.5 kW
? Info times: 3
? AC mains voltage: 400 V
? Number of mppt: 2 + 1 (PV / BAT)
? Max. Input voltage DC: 1000 V
? DC plug type: Sunclix
? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out
? Protection class: IP65
? Celebration: active
? Dimensions: 563 x 405 x 233 mm (H x W x T)
? Weight: up to 21.6 kg

Product features Memory:
? Battery capacity (usable): 8.28 kWh
? Storage Type: Tall Voltage
? Rated voltage: 153.6 V
? Time window extension: unlimited
? Number of memory modules in one unit: 3 to 8
? Number of units parallel: 3
? Cell chemistry: LFP
? COM connections: RJ45
? Bat connections: MC4
? Protection class: IP55
? Dimensions: 987 x 610 x 282 mm (HxWxD)
? Weight: 138.8 kg

Activities using Plenticoins:

General (all G1 / G2 Plenticore Plus Series, MP Plus Series, Enector Wallbox):
Activation of the memory function -> 1 Plenticoin
Activation of the Wallbox Smart Features -> 2 Plenticoins

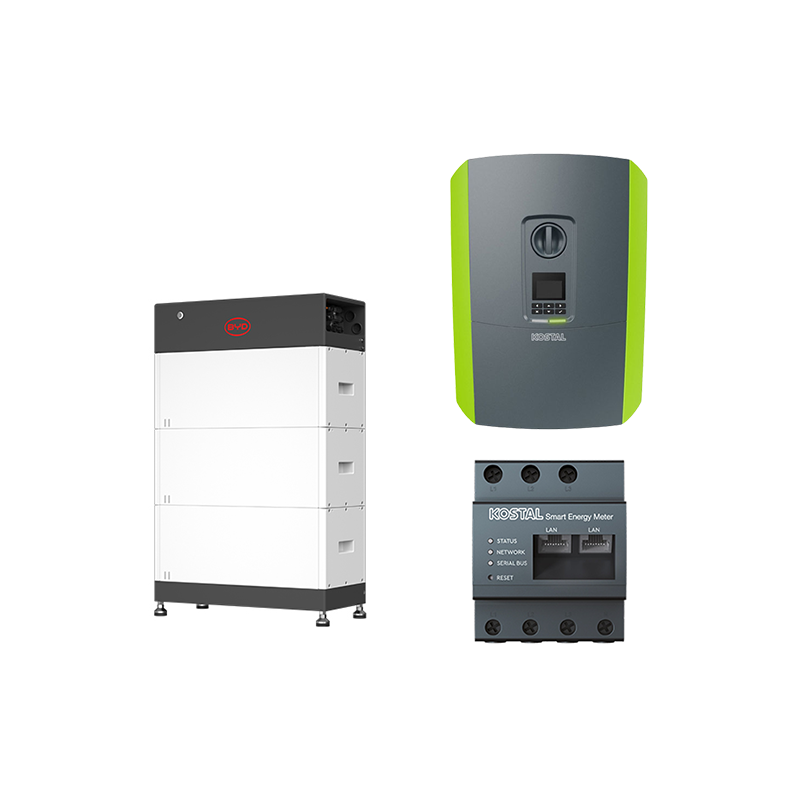

Delivery:
? 1 x Kostal Plenticore Plus 5.5 G2 Hybrid-WR (Article 0152312)
? 1 x BYD B-BOX HV + BCU + BASE (Article 0161507)
? 3 x BYD HVM + memory module (Article 0161505)
? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)

Important technical data

Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
Dangerous Goods Weight (net) (kg) 123.900
