Battery-Box HVB 8.9 + Plenticore Plus 8.5 G2
  • Battery-Box HVB 8.9 + Plenticore Plus 8.5 G2

Battery-Box HVB 8.9 + Plenticore Plus 8.5 G2

0162605
Battery-Box HVB 8.9 + Plenticore Plus 8.5 G2
€8,859.73
VAT included
Quantity
10 Items

Ask about the product on WhatsApp
Description

Product Information "Battery Box HVB 8.9 + Plentricore Plus 8.5 G2"

The Plenticoins which can be ordered for the performance and functional release are to be ordered separately.
For commissioning, the new BYD ENERGY APPT is a current firmware (AB V1.28.0) Required.
The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.

A true stone stone of storage packages: Kostal Plenticore Plus G2 and BYD with the HVB series. Far The latest generation of BYD high-voltage storage was used to improve BCU to the proven properties and corner data. This can be flexibly used for the memory modules of HVB, HVS + and HVM + series. The new automatic SOC balancing optimizer makes the manual adjustment of the loading stand with initial installation and extension-The-Crafted BCU connection management with connectors on the performance and communication level saves additional valuable time during installation.


Produktvorteile:
? Proven and powerful memory components
? Automatic Soc Balancing with initial installation or extension
? Faster cable installation by connector
? Storage continuously expandable time

Product features System:
? AC nominal power: 8.5 kW
? Info times: 3
? AC mains voltage: 400 V
? Number of mppt: 2 + 1 (PV / BAT)
? Max. Input voltage DC: 1000 V
? DC plug type: Sunclix
? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out
? Protection class: IP65
? Celebration: active
? Dimensions: 563 x 405 x 233 mm (H x W x T)
? Weight: up to 21.6 kg

Product features Memory:
? Battery capacity (usable): 8.91 kWh
? Rated voltage: 153.6 V
? Time window extension: unlimited
? Number of memory modules in one unit: 2 to 10
? Number of units parallel: 3
? Cell chemistry: LFP
? Interfaces: RJ45, CAN, WLAN / LAN module (optional)
? Bat connections: MC4
? Protection class: IP55
? Dimensions: 585 x 610 x 282 mm (HxWxD)
? Weight: 96.0 kg

Activities using Plenticoins:

General (all G1 / G2 Plenticore Plus Series, MP Plus Series, Enector Wallbox):
Activation of the memory function: 1 Plenticoin
Activation of Wallbox Smart Features: 2 Plenticoins

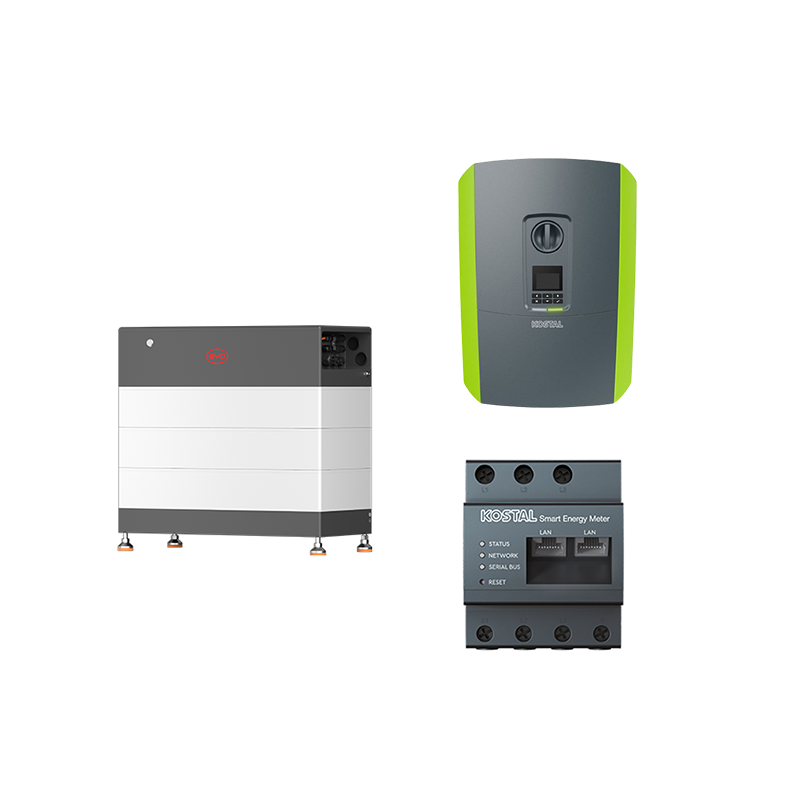

Delivery:
? 1 x Kostal Plenticore Plus 8.5 G2 Hybrid-WR (Article 0152314)
? 1 x BYD B-BOX HV + BCU + BASE (Article 0161507)
? 3 x BYD HVB memory module (Article 0161119)
? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)

Important technical data

Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous Goods Weight (net) (kg) 81.900
Dangerous goods UN no. 3480
