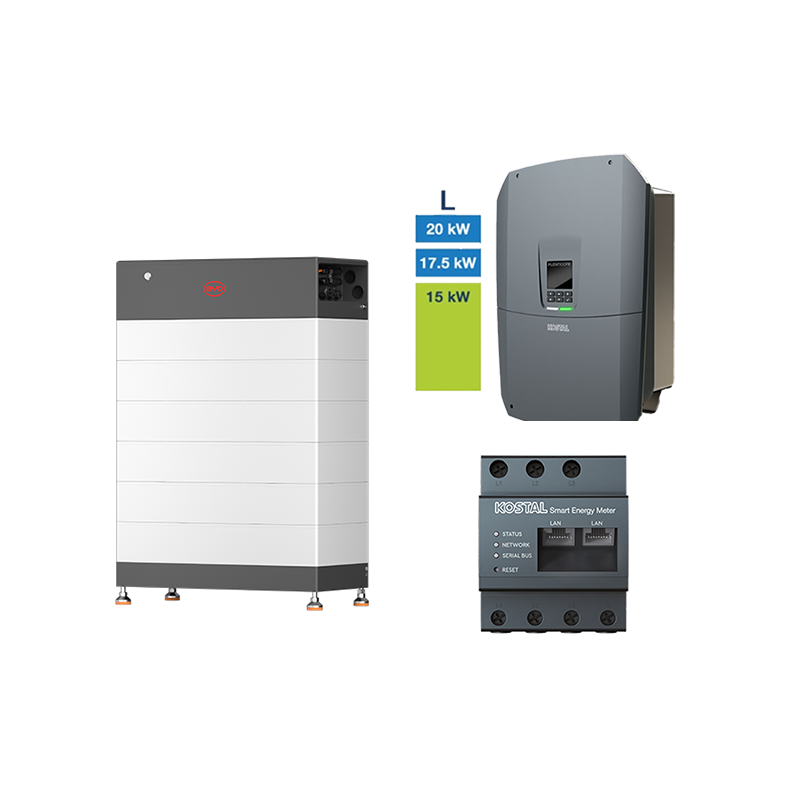

Battery-Box HVB 17.8 + PLENTICORE L G3

With the Plenticore G3 series, Kostal expands its flexible portfolio around the Plenticoin. This in-house currency for the activation of device power and functions is also used here. Thus, the inverters in 3 device variants S, M and L are delivered with a basic capacity of 4 to 15 kW. PLENTICOINS can be used to enable 2 pale performance classes, memory usage and the intelligent connection of the EV charger. At any time. The 3 device versions are thus expressive of a nearly universal application for reduced storage requirements. The proven properties and key data has been used by BCU in the new HVB series by BYD. This can be flexibly used for the memory modules of the HVB, HVS + and HVM +. The new automatic SOC balancing optimizer makes the manual adjustment of the loading stand with initial installation and extension?

Produktvorteile:

? Activate performance and functions as needed using Plenticoins

? 30a input current per mpt

? Full backup with switching device

? Automatic Soc Balancing with initial installation or extension

? Faster cable installation by connector

Product features System:

? AC-based power: 15.0 kW

? AC service extension Level 1: 17.5 kW

? AC service extension Level 1: 20.0 kW

? Info times: 3

? AC mains voltage: 400 V

? Number of mppt: 2 + 1 (PV / BAT)

? Max. Input voltage DC: 1000 V

? DC plug type: Sunclix

? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out

? Protection class: IP65

? Celebration: active

? Dimensions: 561 x 409 x 237 mm (H x W x D)

? Weight: 24.3 kg

Product features Memory:

? Battery capacity (usable): 17,82 kWh

? Rated voltage: 307.2 V

? Time window extension: unlimited

? Number of memory modules in one unit: 2 to 10

? Number of units parallel: 3

? Cell chemistry: LFP

? Interfaces: RJ45, CAN, WLAN / LAN module (optional)

? Bat connections: MC4

? Protection class: IP55

? Dimensions: 903 x 610 x 282 mm (HxWxD)

? Weight: 177.9 kg

Activities using Plenticoins:

Plenticore G3 Series:

Errung around a power class (1 stage) within the device series S / M / L -> 1 Plenticoin

Retention to the maximum power (2 steps) within the device series S / M / L -> 1 + 1 Plenticoin

Activation of the memory function -> 3 Plenticoins

Activation of the comfort function Fär The Enector Wallbox -> 2 Plenticoins

Delivery:

? 1 x Kostal Plenticore L G3 Hybrid-WR (Article 0155067)

? 1 x BYD B-BOX HV + BCU + BASE (Article 0161507)

? 6 x BYD HVB memory module (Article 0161119)

? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)
