Battery-Box HVB 11.8 + Plenticore Plus 10 G2
Battery-Box HVB 11.8 + Plenticore Plus 10 G2
Description
The PLENTICOINs required for power and function activation must be ordered separately.
The new BYD Energy app including the latest firmware (from V1.28.0) is required for commissioning.
The RJ45 terminating plug for the data bus included in the scope of delivery must be fully assembled on site. For this purpose, a wire jumper must be inserted and crimped between pins 1 + 6 (view from above onto the flat connector side with the pin contact surfaces, cable entry facing downwards, pins ascending from left to right). An actual resistor is not required.
A true veteran in the field of storage packages: Kostal Plenticore Plus G2 and BYD with the HVB series. For the latest generation of high-voltage storage systems from BYD, an improved BCU has been used in addition to the proven properties and key data. This can be used flexibly for the storage modules of the HVB, HVS+ and HVM+ series. The new automatic SOC balancing optimiser eliminates the need to manually adjust the charge level during initial installation and expansion. The revised BCU connection management with connectors on the power and communication level saves further valuable time during installation.
Product benefits:
? Proven and powerful storage components
? Automatic SOC balancing for initial installation or expansion
? Faster cable installation thanks to plug connectors
? Storage can be expanded indefinitely
Product features System:
? AC nominal power: 10 kW
? Feed-in phases: 3
? AC mains voltage: 400 V
? Number of MPPT: 2 + 1 (PV / Bat)
? Max. DC input voltage: 1000 V
? DC plug type: Sunclix
? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out
? Protection class: IP65
? Cooling: active
? Dimensions: 563 x 405 x 233 mm (H x W x D)
? Weight: up to 21.6 kg
Product features storage:
? Battery capacity (usable): 11.88 kWh
? Nominal voltage: 204.8 V
? Extension time window: unlimited
? Number of storage modules in one unit: 2 to 10
? Number of units in parallel: 3
? Cell chemistry: LFP
? Interfaces: RJ45, CAN, WLAN/LAN module (optional)
? BAT connections: MC4
? Protection class: IP55
? Dimensions: 691 x 610 x 282 mm (HxWxD)
? Weight: 123.3 kg
Activation via PLENTICOINs:
General (all G1/G2 Plenticore plus series, MP plus series, Enector Wallbox):
Activation of the storage function -> 1 PLENTICOIN
Activation of the Wallbox Smart Features -> 2 PLENTICOINS

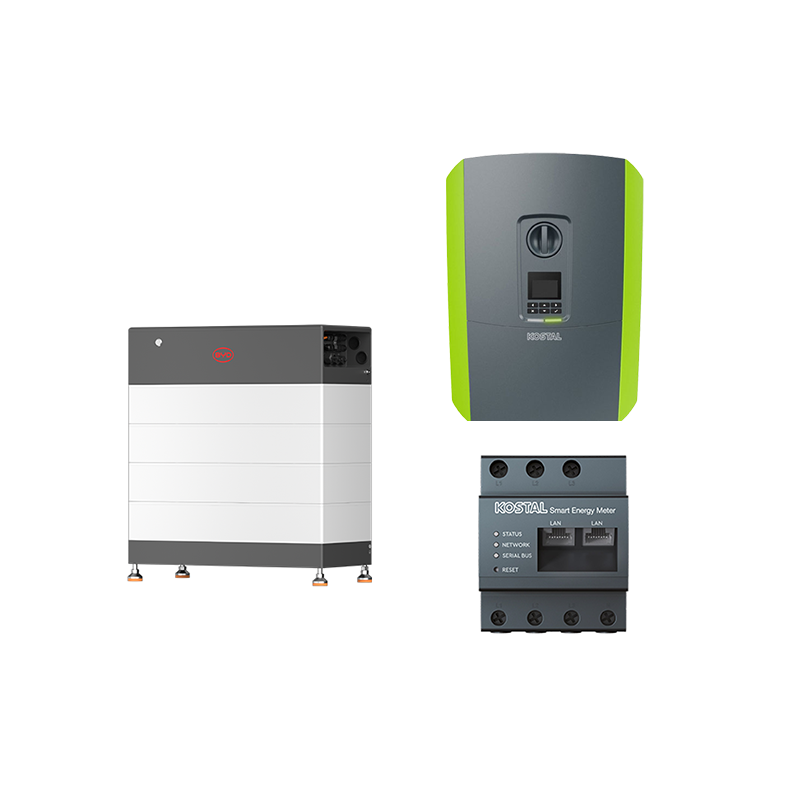

Scope of delivery:
? 1 x Kostal Plenticore Plus 10 G2 Hybrid-WR (article 0152315)
? 1 x BYD B-Box HV+ BCU + Base (article 0161507)
? 4 x BYD HVB storage module (article 0161119)
? 1 x Kostal KSEM G2 Smart Meter (article 0151118)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 109.200 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
