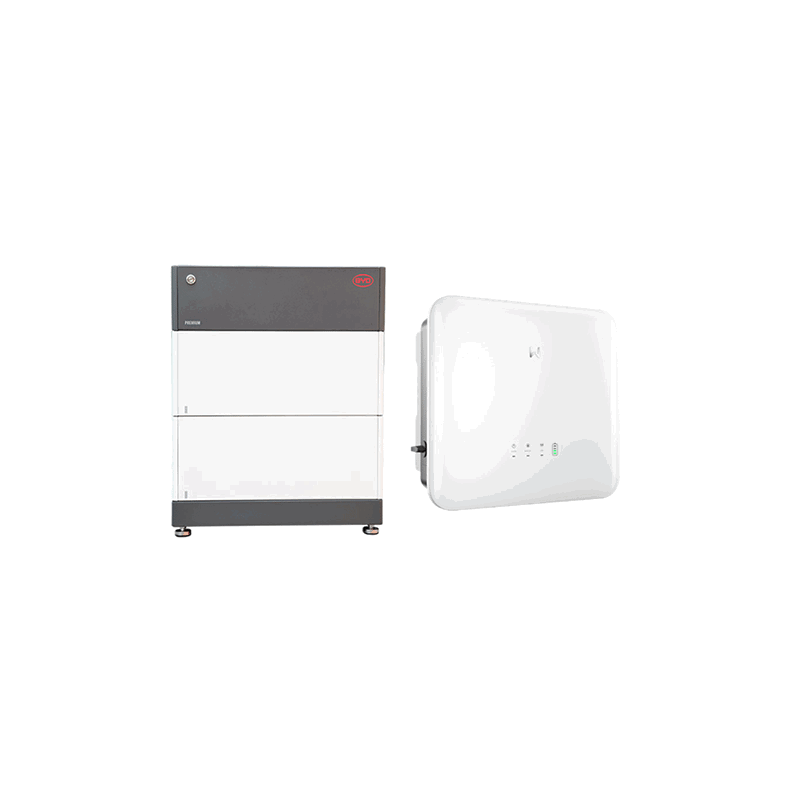

B-Box Premium HVS 5.1 + GW8000-ET-20
  • B-Box Premium HVS 5.1 + GW8000-ET-20

B-Box Premium HVS 5.1 + GW8000-ET-20

0162535
B-Box Premium HVS 5.1 + GW8000-ET-20
€4,457.58
VAT included
Quantity
75 Items

Ask about the product on WhatsApp
Description

Product information "B-Box Premium HVS 5.1 + GW8000-ET-20"

The included communication dongle is the requirements for Cyber Security.

The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.
The 2nd generation of the Goodwe ET-20 Hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET + series received supplements and improvements in many places. With the well-known 16 amps input current per MPP Tracker can be connected to all current module series. With integrated smart meter incl. 3 CTS, communication dongle and AC + DC-Version protection and AFCI arc detection, the equipment is complete. The proven backup connector provides uninterrupted selected circuits. Combined with the BYD HVS system Ideal Far the home use. Proven, reliable and time-indefinitely expandable. Now with faster installation thanks to the new BCU 2.0. The-Crafted BCU connection management with connectors on the performance and communication level saves additional valuable time during installation.
Produktvorteile:
? 16 A input current per mpt
? 3 x CTS + WiFi-LAN dongle with Cyber Security included
? Faster cable installation by connector
? Temporally unlimited

Product features System:
? AC nominal power: 8.0 kW
? Info times: 3
? AC mains voltage: 400 V
? Number of Mpp Tracker: 2
? Max. Input voltage DC: 1000 V
? AFCI arc recognition: Yes-Version 3.0
? DC - Surveillance protection: Type 2
? AC- Overlay protection: Type 2
? Storage Type: Tall Voltage
? Replacement current capable: Yes, about EPS connection
? Interfaces: RS485, CAN, WiFi, LAN
? Protection class: IP66
? Celebration: passive
? Dimensions: 460 x 496 x 221 mm (HXBXT)
? Weight: 23.0 kg

Product features Memory:
? Battery capacity (usable): 5.12 kWh
? Storage Type: Tall Voltage
? Rated voltage: 204.8 V
? Time window extension: unlimited
? Number of memory modules in one unit: 2 to 5
? Number of units parallel: up to 3
? Cell chemistry: LFP
? Communication: CAN, RS485
? COM connections: RJ45
? Bat connections: MC4
? Celebration: passive
? Protection class: IP55
? Dimensions: 762 x 585 x 298 mm (HxWxD)
? Weight: 91,0 kg


Delivery:
? 1 x Goodwe GW8000-ET-20 G2 Hybrid-WR (Article 0160690)
? 1 x BYD B-Box Premium HV BCU + BASE 2.0 (Article 0159471)
? 2 x BYD HVS memory module (Article 0131385)

Important technical data

Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous Goods Weight (net) (kg) 75.400
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
