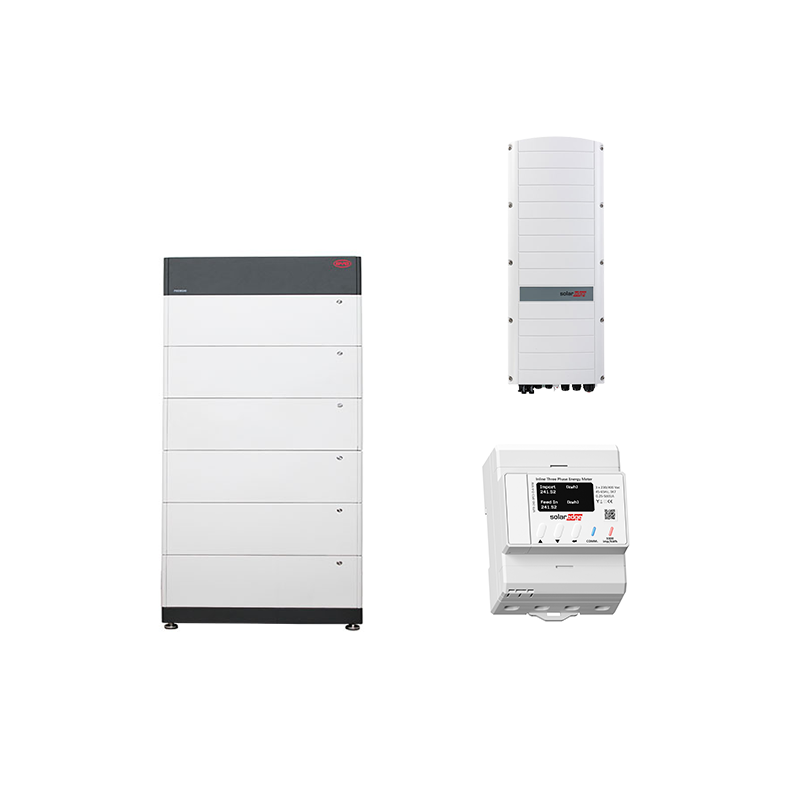

B-BOX LVS 24.0 (24 kWh)+ SE10K-RWS STOREDGE HYBRID
B-BOX LVS 24.0 (24 kWh)+ SE10K-RWS STOREDGE HYBRID
Description
For the use of the wireless Energy-Net an additional Energy-Net board (Krannich item for pack of 5 pcs. 0150383) is needed.
A Cat6 communication cable is also required.
Note:
In the shopping cart, you have the option of removing individual components of the set from your order and replacing them with comparable products if necessary.
Set includes:
6x 0132855 (BYD B-BOX PREMIUM LVS battery module)
1x 0150825 (BYD LVS Battery Management Unit)
1x 0132856 (BYD LVS Power Distribution Unit)
1x 0144197 (SE10K-RWS StorEdge Hybrid)
1x 0148127 (Inline Energy Meter 3-phase MTR-240-3PC1-D-A-MW)
1x 0133043 (cable set with plug for connection of SE with BYD)
Battery:
- usable capacity: 24,00 kWh
- nominal voltage: 51.2 V
- Max. Output current: 250A
- Peak Output current: 360A, 5s
- Operating Voltage Range: 40-57,6 V
- ambient temperature: -10 ?C to +50 ?C
- interfaces: CAN/RS485
- round trip energy efficiency: >= 95 %
- certification: VDE2510-50 / IEC62619/ CEC / CE / UN38.3
- IP protection class: IP55
- Applications: ON Grid / ON Grid + Backup / OFF Grid
Key technical data
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (AND) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 270.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| A No. | 3480 |
