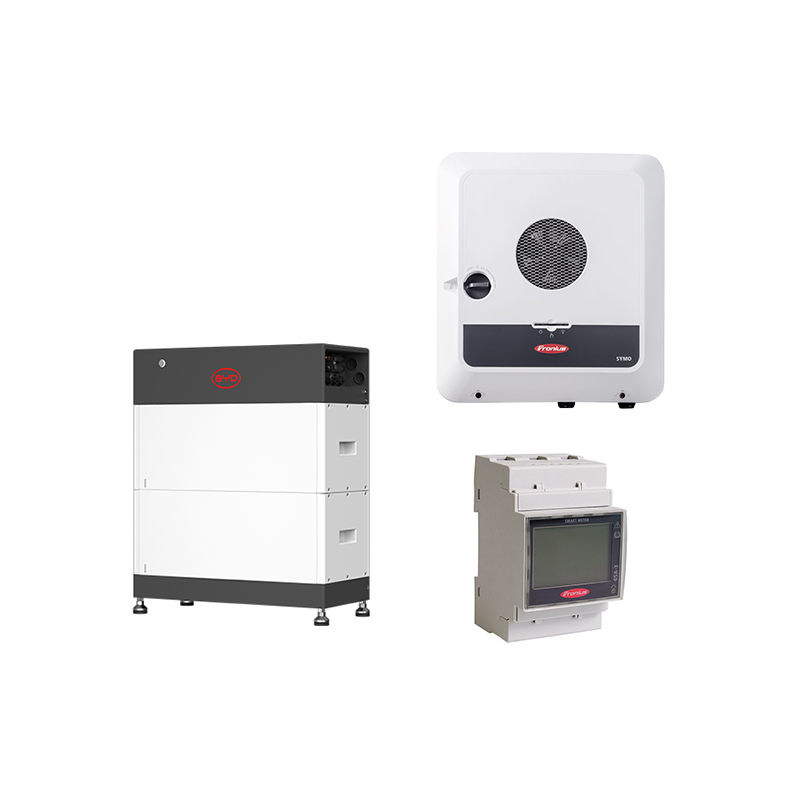

B-Box HVS+ 5.1 + Symo GEN24 5.0 Plus

0162935
B-Box HVS+ 5.1 + Symo GEN24 5.0 Plus
€5,672.54
VAT included
Quantity
73 Items

Ask about the product on WhatsApp
Description

Product Information "B-Box HVS + 5.1 + Symo Gen24 5.0 Plus"

The combination with components of the HVS predecessor series is not ease.
The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.

The Symo Gen24 plus of Fronius is a solid size in the residential segment. His proven technology and flexibility as well as the optional features and equipment are barely open. Thus, a practical emergency power socket is implemented via the integrated PV point. With additional module also fär continuous operation and seamless switching. And if the power failure is to stay bright throughout the house, various variants are available with the Fronius Backup Switch and Controller. Here combines with the new HVS + memory of BYD. The automatic SOC balancing optimizer makes the manual adjustment of the loading stand with initial installation and extension-The-Crafted BCU connection management with connectors on the performance and communication level saves additional valuable time during installation.

Produktvorteile:
? Proven and powerful hybrid system
? Emergency stream-Ber Fronius PV Point
? 3-phase replacement current with Fronius Backup Switch + Controller ease
? Automatic Soc Balancing with initial installation or expansion of the memory
? Storage continuously expandable time

Product features System:
? AC nominal power: 5.0 kW
? Mains connection: 3-phase
? AC mains voltage: 400 V
? Number of mppt: 2
? Max. Input voltage DC: 1000 V
? Max. Input current DC: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A
? Communication: WLAN, 2 x Ethernet
? Interfaces: 2 x RS485, 6 x di (FRE), 6 x do
? Protection class: IP66
? Celebration: active
? Weight: 23.4 kg
? Dimensions: 595 x 529 x 180 mm (H x W x D)


Produkteigenschaften:
? Battery capacity (usable): 5.12 kWh
? Storage Type: Tall Voltage
? Rated voltage: 204.8 V
? Time window extension: unlimited
? Number of memory modules in a unit: 2 to 5 battery modules
? Number of units parallel: 3
? Cell chemistry: LFP
? COM connections: RJ45
? Bat connections: MC4
? Protection class: IP55
? Dimensions: 747 x 610 x 282 mm (HxWxD)
? Weight: 91.6 kg


Delivery:
? 1 x Fronius Symo Gen24 5.0 Plus Hybrid-WR (Article 0134290)
? 1 x Fronius Smart Meter TS 65A-3 (Article 0151650)
? 1 x BYD B-BOX HV BCU + BASE (Article 0161507)
? 2 x BYD HVS + memory module (Article 0161506)

Important technical data

Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous Goods Weight (net) (kg) 77.000
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
