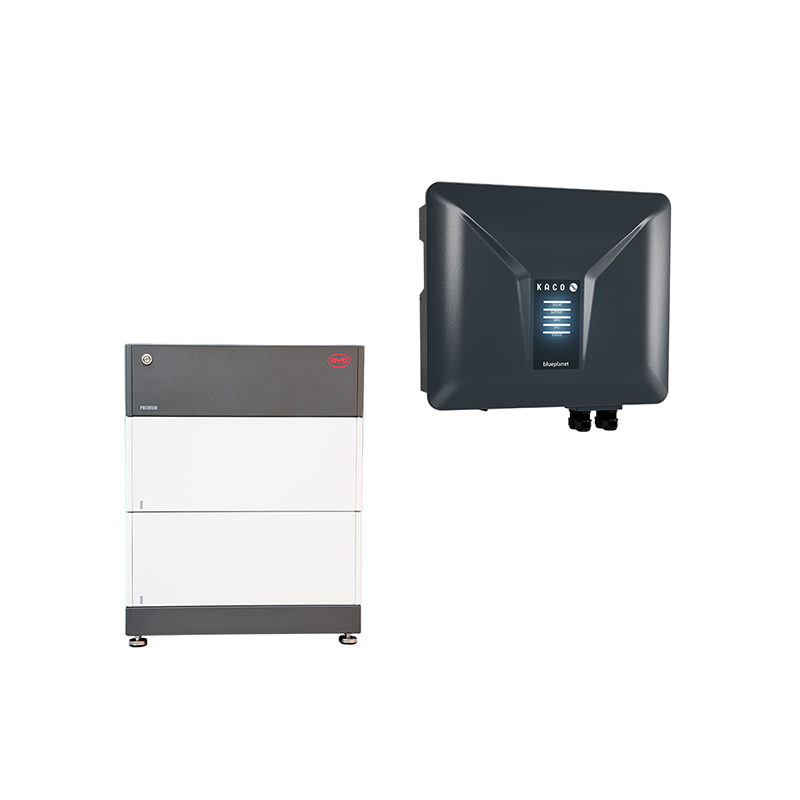

B-Box HVS 5.1 + blueplanet hybrid 10.0 NH3-M3

The NH3-M3 Hybrid inverter series from KACO is available in 3 performance classes of 8 to 12 kW. Since up to 3 systems are operated in parallel, in addition to home applications, small commercial systems are also implemented. The 3 independent MPP Tracker and the integrated backup connection with a switching time <10ms creates flexible uses. Version Protection Type 2 on the DC side and a complete equipment to communication interfaces do not leave any was bags. Even the applications as a pure storage and off-grid system is enabled. In combination with the high-voltage power of the HVM / HVS memory from BYD, everything is feasible here.

Produktvorteile:

? 3 Mpp Tracker with 16A input current

? Backup connection with <10ms switching time

? Backup and island operation without additional activation

? Memory in the proven stack concept

? Unlimited in time

Product features System:

? AC Power: 10.0 kW

? Number mppt: 3

? AC connection: 400V, 3-phase

? Communication: WiFi, LAN, RS485, CAN

? Interfaces: 2 x do, 4 x di (fre? Baco powador protect)

? Protection class: IP66

? Celebration: passive

? Weight: 28.5 kg

? Dimensions: 545 x 530 x 230 mm (W x H x D)

? Included in delivery: Energy meter SDM630 + 3 x transducers

Product features Memory:

? Battery capacity (usable): 5.12 kWh

? Rated voltage: 204.8 V

? Time window extension: unlimited

? Construction per unit: 2 to 5 battery modules

? Number of units parallel: 3

? Cell chemistry: LFP

? COM connections: RJ45

? Bat connections: MC4

? Protection class: IP55

? Dimensions: 762 x 298 mm (HxWxD)

? Weight: 91,0 kg

Conclusion:

This station wagon has the best conditions for flexible and reliable applications.

Delivery:

? 1 x Kaco BluePlanet Hybrid 10.0 incl. CTÄS (Article 0154928)

? 1 x BYD B-Box Premium HV BCU + BASE 2.0 (Article 0159471)

? 2 x BYD HVS memory module (Article 0131385)
