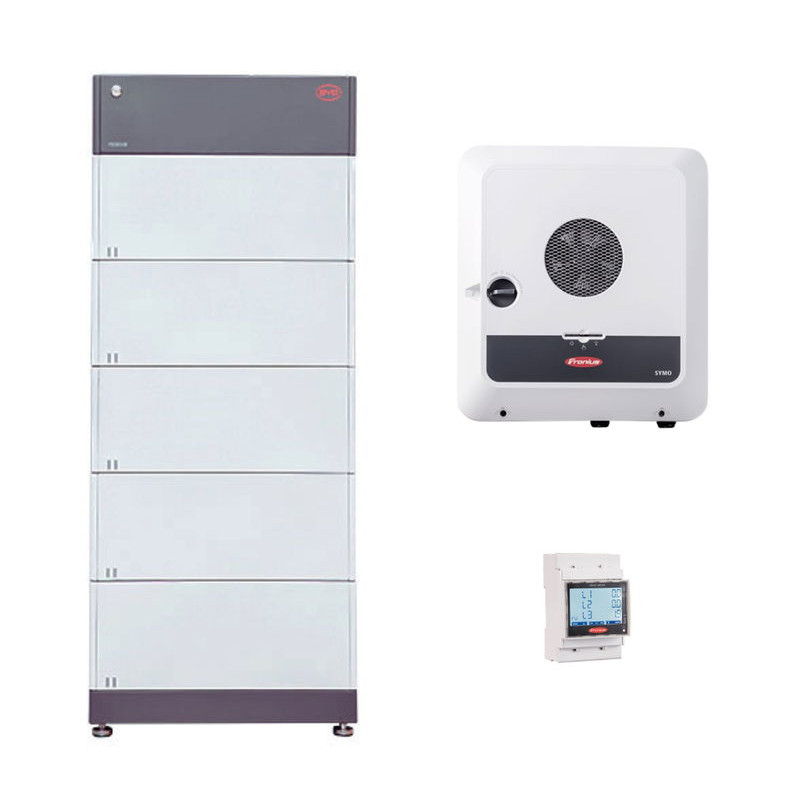

B-BOX HVM 13.8 + SYMO GEN24 10.0 PLUS
  • B-BOX HVM 13.8 + SYMO GEN24 10.0 PLUS

B-BOX HVM 13.8 + SYMO GEN24 10.0 PLUS

0160043
B-BOX HVM 13.8 + SYMO GEN24 10.0 PLUS
€10,564.08
VAT included
Quantity
10 Items

Ask about the product on WhatsApp
Description

Product Information "B-Box HVM 13.8 + Symo Gen24 10.0 Plus"

The smart meter included in the set has no interface for the use of dynamic current rates. If this feature will be sought by using the Fronius Smart Meter IP (Article 0154145).

Far the additionally actuated power cable (4 to 6mm?) Can a standard DB PV1-F Solar Cable (z.B. KBE).

In addition, a CAT6 communication cable is consecutively.

The product is not usable in Finland, Denmark and Ireland.

The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.

Note:
In the shopping cart, you have the moodiness as needed to remove individual components of the set from your order and replace with comparable products if necessary.
The Symo Gen24 plus of Fronius is a solid size in the residential segment. His proven technology and flexibility as well as the optional features and equipment are barely open. Thus, a practical emergency power socket is implemented via the integrated PV point. With additional module also fär continuous operation and seamless switching. And if the power failure is to stay bright throughout the house, various variants are available with the Fronius Backup Switch and Controller. In this combination with another virgin stone of the PV memory world-the BYD HVM system. Proven, reliable and time-indefinitely expandable. Now with faster installation thanks to the new BCU 2.0.

Produktvorteile:
? Proven and powerful hybrid system
? Emergency stream-Ber Fronius PV Point
? 3-phase replacement current with Fronius Backup Switch + Controller ease
? Storage continuously expandable time

Product features System:
? AC nominal power: 10.0 kW
? Mains connection: 3-phase
? AC mains voltage: 400 V
? Number of mppt: 2
? Max. Input voltage DC: 1000 V
? Max. Input current DC: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A
? Communication: WLAN, 2 x Ethernet
? Interfaces: 2 x RS485, 6 x di (FRE), 6 x do
? Protection class: IP66
? Celebration: active
? Weight: 23.4 kg
? Dimensions: 595 x 529 x 180 mm (H x W x D)



Product features Memory:
? Battery capacity (usable): 13.8 kWh
? Storage Type: Tall Voltage
? Rated voltage: 256 V
? Time window extension: unlimited
? Number of memory modules in one unit: 4 to 8
? Number of units parallel: up to 3
? Cell chemistry: LFP
? Communication: CAN, RS485
? COM connections: RJ45
? Bat connections: MC4
? Celebration: passive
? Protection class: IP55
? Dimensions: 1461 x 585 x 298 mm (HxWxD)
? Weight: 167.0 kg

Conclusion: FRONIUS GEN24 and BYD B-BOX-Here you can not go wrong here.

Delivery:
? 1 x Fronius Symo Gen24 10.0 Plus Hybrid-WR (Article 0132173)
? 1 x Fronius Smart Meter TS 65A-3 (Article 0151650)
? 1 x BYD B-Box Premium HV BCU + BASE 2.0 (Article 0159471)
? 5 x BYD HVM memory module (Article 0131400)

Important technical data

Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous Goods Weight (net) (kg) 232.300
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
