B-Box HVM+ 11.0 + Symo GEN24 12.0 SC Plus

0162930
B-Box HVM+ 11.0 + Symo GEN24 12.0 SC Plus
€9,544.02
VAT included
Quantity
61 Items

Ask about the product on WhatsApp
Description

Product Information "B-Box HVM + 11.0 + Symo Gen24 12.0 SC Plus"

The combination with components of the HVM predecessor series is not ease.
The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.

The Symo Gen24 12.0 SC is the twenty sprue in the Gen24 family of Fronius. As well as its smaller bräder, the SC is available as a full-fledged hybrid or battery ready. Here is this-Plus-The difference. You decide yourself if and when you want to use this function by activation code. The smart PV-Point emergency power connection with a maximum of 3 KW output power is active in every extension and can now be used with a small turning units in continuous operation. All other functions and interfaces remain well proven. Here combines with the new HVM + memory of BYD. The automatic SOC balancing optimizer makes the manual adjustment of the loading stand with initial installation and extension-The-Crafted BCU connection management with connectors on the performance and communication level saves additional valuable time during installation.

Produktvorteile:
? Proven and powerful hybrid system
? Emergency stream-Ber Fronius PV-Point, optional also to date
? 3-phase replacement current with Fronius Backup Switch + Controller ease
? Automatic Soc Balancing with initial installation or expansion of the memory
? Storage continuously expandable time

Product features System:
? AC Power: 12.0 kW
? AC connection: 400V, 3-phase
? Number of mppt: 2
? DC input current: MPPT 1 - 28.0 A, MPPT 2 - 14.0 A
? Communication: Wi-Fi, Ethernet, 2 x RS485
? Interfaces: 6 x di (FRE), 6 x do
? Protection class: IP66
? Celebration: active
? Dimensions: 595 x 529 x 180 mm (H x W x D)
? Weight: 22.8 kg

Product features Memory:
? Battery capacity (usable): 11,04 kWh
? Storage Type: Tall Voltage
? Rated voltage: 204.8 V
? Time window extension: unlimited
? Number of memory modules in one unit: 4 to 8
? Number of units parallel: 3
? Cell chemistry: LFP
? COM connections: RJ45
? Bat connections: MC4
? Protection class: IP55
? Dimensions: 1227 x 610 x 282 mm (HxWxD)
? Weight: 180.2 kg

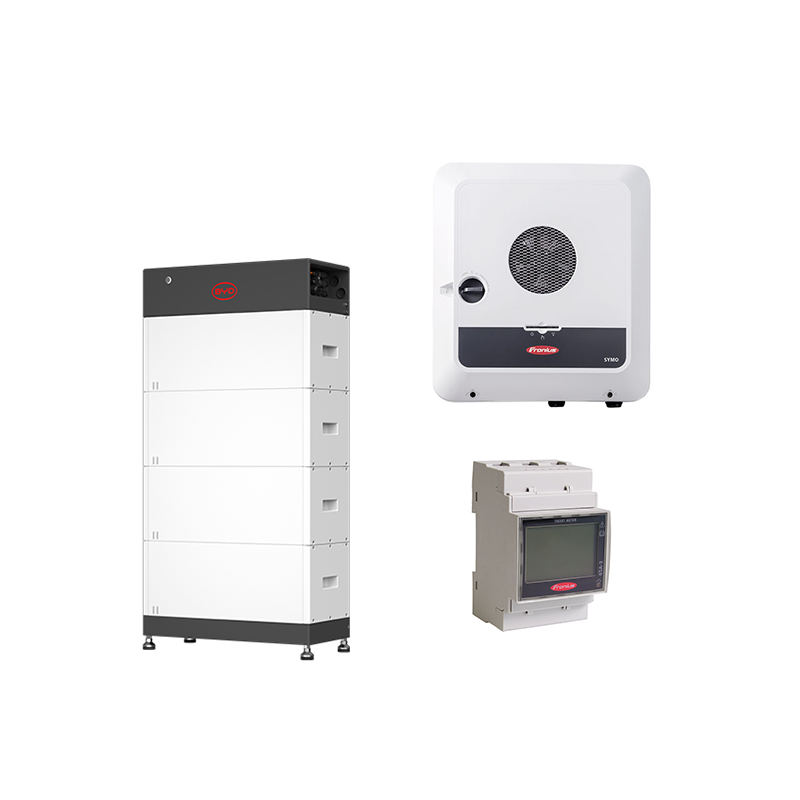

Delivery:
? 1 x Fronius Symo Gen24 12.0 SC Plus Hybrid-WR (Article 0156755)
? 1 x Fronius Smart Meter TS 65A-3 (Article 0151650)
? 1 x BYD B-BOX HV BCU + BASE (Article 0161507)
? 4 x BYD HVM + memory module (Article 0161505)

Important technical data

Dangerous Goods Weight (net) (kg) 165.200
Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
