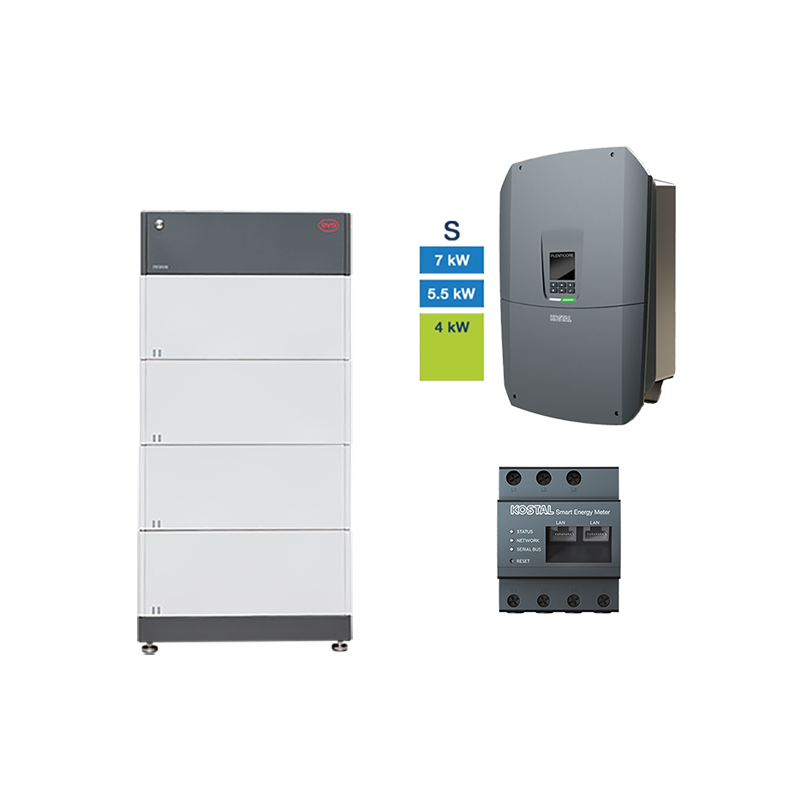

B-Box HVM 11.0 + Plenticore S G3
  • B-Box HVM 11.0 + Plenticore S G3

B-Box HVM 11.0 + Plenticore S G3

0161079
B-Box HVM 11.0 + Plenticore S G3
€7,581.86
VAT included
Quantity
12 Items

Ask about the product on WhatsApp
Description

Product information "B-Box HVM 11.0 + Plenticore S G3"

The 3 Plenticins that can be activated for activating the memory function must be ordered separately.

The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.
With the new Plenticore G3 series, Kostal expands its flexible portfolio around the Plenticoin. This in-house currency for the activation of device power and functions is also used here. Thus, the inverters in 3 device variants S, M and L are delivered with a basic capacity of 4 to 15 kW. PLENTICOINS can be used to enable 2 pale performance classes, memory usage and the intelligent connection of the EV charger. At any time. The 3 new device versions are thus expressive of a nearly universal freedom of application with reduced storage requirements. Here in the attractive power bundle with the proven HVM series of BYD. Proven, reliable and time-indefinitely expandable. Now with even faster installation thanks to the new BCU 2.0.

Produktvorteile:
? Activate performance and functions as needed using Plenticoins
? 17 A input current per mpt
? Full backup with switching device
? Storage continuously expandable time
? Certified battery safety gem ?? VDE 2510-50

Product features System:
? AC-based power: 4.0 kW
? AC service extension Level 1: 5.5 kW
? AC service extension Level 2: 7.0 kW
? Number of mppt: 2 + 1 (PV / BAT)
? AC connection: 3-phase
? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out
? Protection class: IP65
? Celebration: active
? Dimensions: 561 x 409 x 237 mm (H x W x D)
? Weight: 19.6 kg

Product features Memory:
? Battery capacity (usable): 11,04 kWh
? Time window extension: unlimited
? Cell chemistry: LFP
? Rated voltage: 204.8 V
? Protection class: IP55
? Dimensions: 1228 x 585 x 298 mm (H x W x D)
? Weight: BMS 15.0 kg, 4 x memory each 38.0 kg

Activities using Plenticoins:
Return to a performance class (1 stage) within the device series S / M / L: 1 Plenticoin
Retention to the maximum power (2 steps) within the device series S / M / L: 1 + 1 Plenticoin
Activation of the memory function: 3 Plenticoins
Activation of the comfort function Fär The Enector Wallbox: 2 Plenticoins

Delivery:
? 1 x Kostal Plenticore S G3 Hybrid-WR (Article 0155065)
? 1 x BYD B-Box Premium HV BCU + BASE 2.0 (Article 0159471)
? 4 x BYD HVM memory module (Article 0131400)
? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)

Important technical data

Dangerous goods transport category 2
Dangerous Goods Weight (net) (kg) 152.000
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
