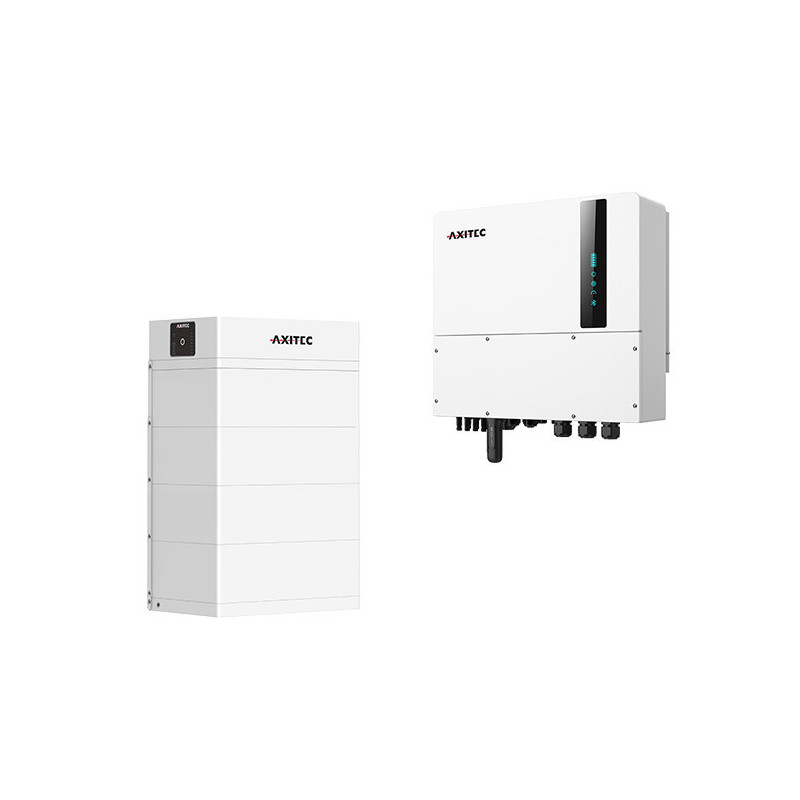

AXIstorage Li SV3 19.4 + AXIhycon 20H

Axitec from head to toe – or in our case, rather from roof to basement. Axitec now completes its quality chain with the new AXIhycon hybrid inverter series. Naturally compatible with the company's own AXIstorage Li SV1, SV2 and the new SV3 high-voltage storage systems. With up to 16 amps of input current per MPP tracker, integrated arc fault monitoring and type 2 overvoltage protection, it leaves little to be desired. A backup function at UPS level is another plus point.

Product advantages:

• Up to 20A DC input current

• 4 MPP trackers

• Integrated AFCI and type 2 DC overvoltage protection

• Backup with UPS level

Product features System:

• AC power: 20.0 kW

• Feed-in phases: 3

• AC mains voltage: 400 V

• Number of MPPT: 4

• Connections per MPPT: 1

• Max. DC input voltage: 1000 V

• DC connection: MC4

• Communication: WLAN (opt.), Ethernet, CAN, RS485

• Protection class: IP66

• Cooling: passive

• Weight: 38.4 kg

• Dimensions: 563 x 546 x 235 mm (W x H x D)

• Energy meter included with inverter

Product features Storage:

• Battery capacity (usable): 19.4 kWh

• Storage type: high voltage

• Nominal voltage: 409.6 V

• Time window extension: up to 5 years

• Number of storage modules in one unit: 2 to 7

• Cell chemistry: LFP

• Communication: RS485, CAN

• Protection class: IP55

• Dimensions: 870 x 540 x 350 mm (H x W x D)

• Weight: BMS + base: 14.0 kg, 4 x storage unit, 39.0 kg each

Conclusion:

The new trend of ‘everything from a single source’ is now also available from Axitec. Quality from roof to basement.

Scope of delivery:

• 1 x AXIhycon 20H hybrid inverter, incl. meter (item 0156900)

• 1 x AXIstorage Li SV3 BMS (item 0161828)

• 4 x AXIstorage Li SV3 storage module (item 0161826)
