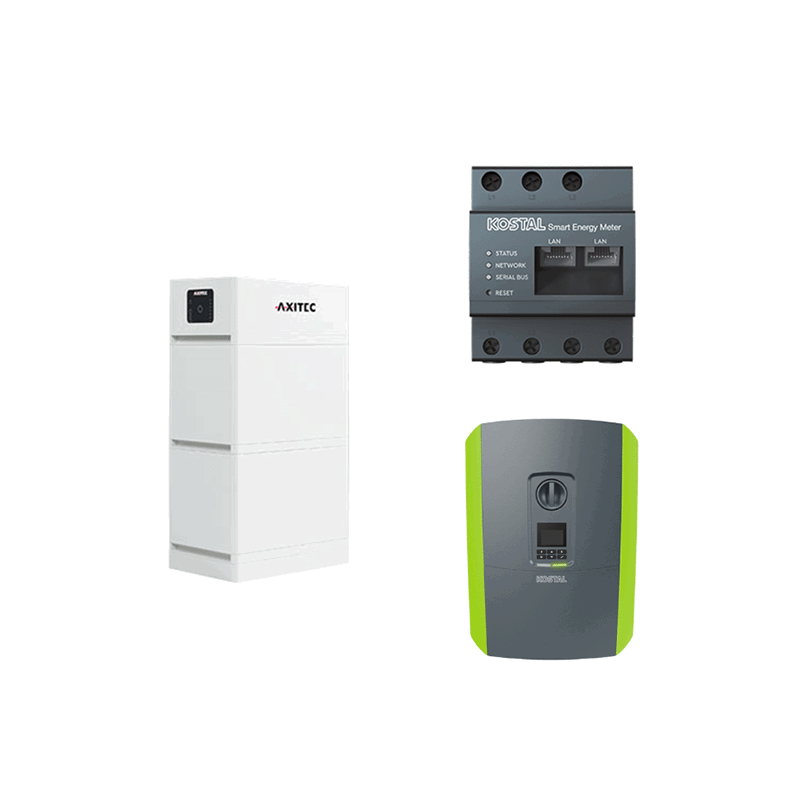

AXIstorage Li SV2 6.7 + Plenticore Plus 4.2 G2

Two old hands meet - instead of a fairy tale, we start with a top storage combination: the Kostal Plenticore Plus G2 and Axitex AXIstorage Li SV2. Proven inverter technology with fresh features meets compact and powerful storage. Quickly and safely installed with certification according to VDE 2510-50.

Product benefits:

? Powerful storage package

? Easy network connection to each other as daisy-chain

? Fast and secure storage installation and expansion

? Certified safety according to VDE 2510-50

Product features System:

? AC power: 4.2 kW

? Number of MPPT: 2 + 1 (PV / Bat)

? DC input current: 13 A per MPPT

? AC connection: 3-phase

? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

? Protection class: IP65

? Cooling: active

? Weight: 19.6 kg

Product features Storage:

? Battery capacity (usable): 6.7 kWh

? Time window expansion: 5 years

? Cell chemistry: LFP

? Rated voltage: 192.0 V

? Protection class: IP55

? Dimensions: 822 x 450 x 296 mm (H x W x D)

? Weight: BMS 12.0 kg, 2 x storage 35.0 kg each

Conclusion:

This combination of 2 old hands from the inverter and storage sector can be installed with the best conscience.

Activation via PLENTICOINs:

General (all G1/G2 Plenticore plus series, MP plus series, Enector Wallbox):

Activation of the storage function: 1 PLENTICOIN

Activation of the Wallbox Smart Features: 2 PLENTICOINS

Plenticore G3 series:

Increase by one power class (1 level) within the S / M / L device series: 1 PLENTICOIN

Increase to maximum power (2 levels) within the S / M / L device series: 1+1 PLENTICOIN

Activation of the battery function: 3 PLENTICOINS

Scope of delivery:

? 1 x Kostal Plenticore Plus 4.2 G2 hybrid inverter (item 0152311)

? 1 x AXIstorage Li SV2 BMS (item 0152359)

? 2 x AXIstorage Li SV2 Energy-Pack (item 0150761)

? 1 x Kostal KSEM G2 Smart Meter (item 0151118)
