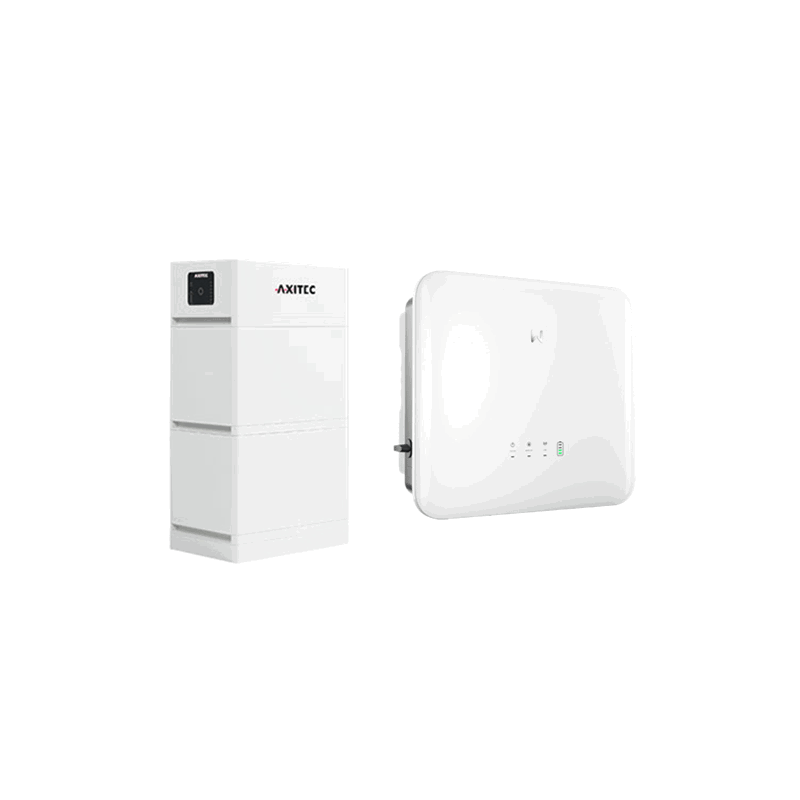

AXIstorage Li SV2 6.7 + GW10K-ET-20

The 2nd generation of the Goodwe ET-20 Hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET + series received supplements and improvements in many places. With the well-known 16 amps input current per MPP Tracker can be connected to all current module series. With integrated smart meter incl. 3 CTS and communication dongle as well as AC + DC-Surgerine protection and AFCI arc detection, the equipment is complete. The backup connector provides uninterrupted circuits. In a proven combination with the axistorage high-voltage storage system from Axitec. Reliable technology in efficient stack construction. Thanks to the expandable battery modules with up to 16.9 kWh usable capacity you are ideally suitable for home applications.

Produktvorteile:

? Emergency stream with UPS function

? 16 A input current per mpt

? 3 x CTS + WiFi-LAN dongle with Cyber Security included

? Efficient, compact stack construction

Product features System:

? AC nominal power: 10.0 kW

? Info times: 3

? AC mains voltage: 400 V

? Number of Mpp Tracker: 3

? Max. Input voltage DC: 1000 V

? AFCI arc recognition: Yes-Version 3.0

? DC - Surveillance protection: Type 2

? AC- Overlay protection: Type 2

? Storage Type: Tall Voltage

? Replacement current capable: Yes, about EPS connection

? Interfaces: RS485, CAN, WiFi, LAN

? Protection class: IP66

? Celebration: passive

? Dimensions: 460 x 496 x 221 mm (HXBXT)

? Weight: 25.0 kg

Product features Memory:

? Battery capacity (usable): 6.7 kWh

? Discharge depth DOD: 95%

? Time window extension: up to 2 years

? Cell chemistry: LFP

? Rated voltage: 192.0 V

? Protection class: IP55

? Dimensions: 822 x 450 x 296 mm (HxWxD)

? Weight: BMS + Socket: 11.5 kg, 2 x memory each 35.5 kg

Delivery:

? 1 x Goodwe GW10K-ET-20 G2 Hybrid-WR (Article 0160691)

? 1 x Axitec Axistor Li SV2 BCU (Article 0152359)

? 2 x Axitec Axistorage Li Sv2 Memory Module (Article 0150761)
