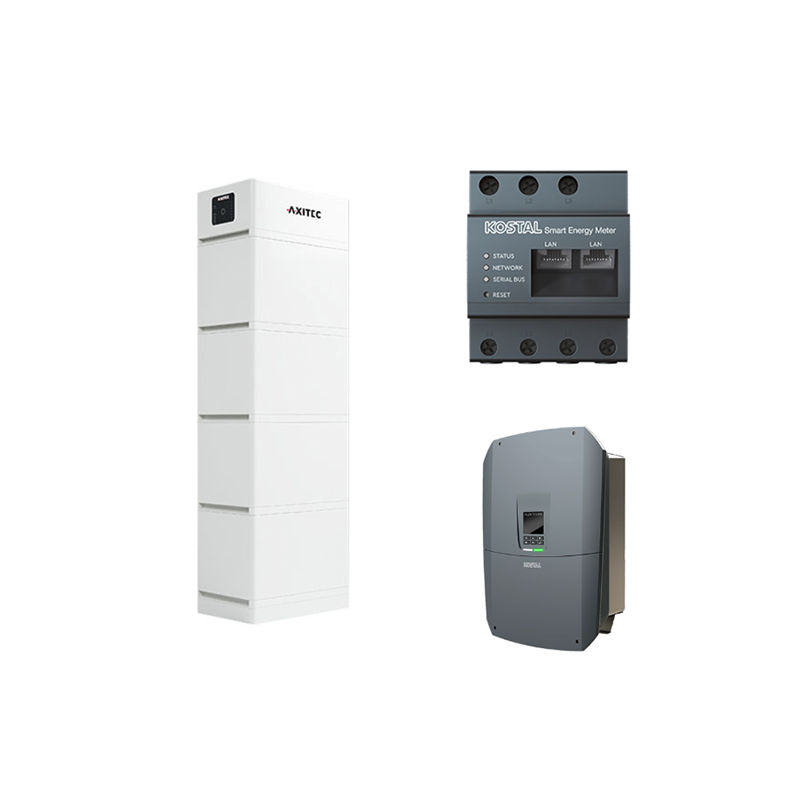

AXIstorage Li SV2 13.5 + Plenticore S G3

With the new Plenticore G3 series, Kostal expands its flexible portfolio around the Plenticoin. This in-house currency for the activation of device power and functions is also used here. Thus, the inverters in 3 device variants S, M and L are delivered with a basic capacity of 4 to 15 kW. PLENTICOINS can be used to enable 2 pale performance classes, memory usage and the intelligent connection of the EV charger. At any time. The new device versions are thus expressive of a nearly universal freedom of application with reduced storage requirements. Here in the attractive power bundle with the axista Li Sv2 HV memory from Axitec.

Produktvorteile:

? Activate performance and functions as needed using Plenticoins

? 17 A input current per mpt

? Full backup with switching device

? Certified memory security according to VDE 2510-50

Product features System:

? AC-based power: 4.0 kW

? AC service extension Level 1: 5.5 kW

? AC service extension Level 1: 7.0 kW

? Number of mppt: 2 + 1 (PV / BAT)

? AC connection: 3-phase

? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out

? Protection class: IP65

? Celebration: active

? Dimensions: 561 x 409 x 237 mm (H x W x D)

? Weight: 21.8 kg

Product features Memory:

? Battery capacity (usable): 13.5 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 384.0 V

? Protection class: IP55

? Dimensions: 1414 x 450 x 296 mm (HxWxD)

? Weight: BMS 12.0 kg, 4 x storage per 35.0 kg

Activities using Plenticoins:

General (all G1 / G2 Plenticore Plus Series, MP Plus Series, Enector Wallbox):

Activation of the memory function -> 1 Plenticoin

Activation of the Wallbox Smart Features -> 2 Plenticoins

Plenticore G3 Series:

Return to a performance class (1 stage) within the device series S / M / L -> 1 Plenticoin

Retention to the maximum power (2 steps) within the device series S / M / L -> 1 + 1 Plenticoin

Activation of the memory function -> 3 Plenticoins

Delivery:

? 1 x Kostal Plenticore S G3 Hybrid-WR (Article 0155065)

? 1 x Axistorage Li SV2 BMS (Article 0152359)

? 4 x Axistorage Li SV2 Energy-Pack (Article 0150761)

? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)
