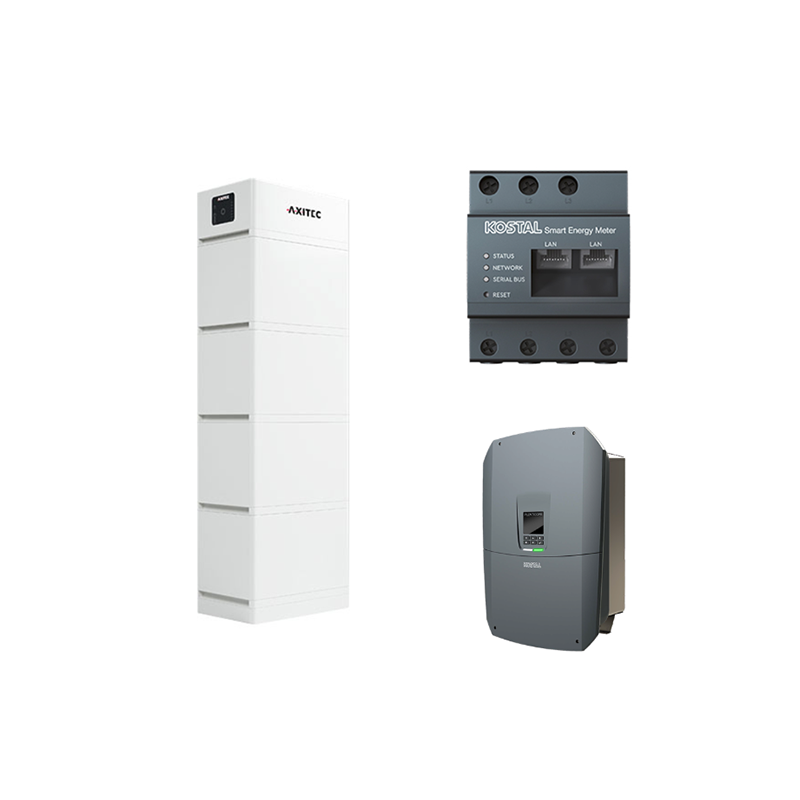

AXIstorage Li SV2 13.5 + Plenticore M G3

With the new PLENTICORE G3 series, KOSTAL is expanding its flexible portfolio around the PLENTICOIN. This in-house currency for unlocking device performance and functions is also used here. The inverters are delivered in 3 device variants S, M and L with a basic output of 4 to 15 kW. Using PLENTICOINs, two higher performance classes, storage usage and the intelligent connection of the EV charger can be activated. At any time. The new device versions enable almost universal freedom of use with reduced storage requirements. Here in an attractive power bundle with the AXIstorage Li SV2 HV storage from Axitec.

Product advantages:

? Activate performance and features as needed using PLENTICOINs

? 17A input current per MPPT

? Full backup with switching device

? Certified storage safety according to VDE 2510-50

Product features system:

? AC base power: 8.5 kW

? AC power expansion level 1: 10.0 kW

? AC power expansion level 1: 12.5 kW

? Number of MPPT: 2 + 1 (PV / Bat)

? AC connection: 3-phase

? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

? Protection class: IP65

? Cooling: active

? Dimensions: 561 x 409 x 237 mm (H x W x D)

? Weight: 22.3kg

Product features storage:

? Battery capacity (usable): 13.5 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 384.0V

? Protection class: IP55

? Dimensions: 1414 x 450 x 296 mm (HxWxD)

? Weight: BMS 12.0 kg, 4 x storage units 35.0 kg each

Activations using PLENTICOINs:

General (all G1/G2 Plenticore plus series, MP plus series, Enector Wallbox):

Activation of the storage function -> 1 PLENTICOIN

Activation of the Wallbox Smart Features -> 2 PLENTICOINS

Plenticore G3 series:

Increase by one power class (1 level) within the S / M / L device series -> 1 PLENTICOIN

Increase to maximum power (2 levels) within the S / M / L device series -> 1+1 PLENTICOIN

Activation of the battery function -> 3 PLENTICOINS

Scope of delivery:

? 1 x Kostal Plenticore M G3 Hybrid-WR (Item 0155066)

? 1 x AXIstorage Li SV2 BMS (Item 0152359)

? 4 x AXIstorage Li SV2 Energy Pack (Item 0150761)

? 1 x Kostal KSEM G2 Smart Meter (Item 0151118)
