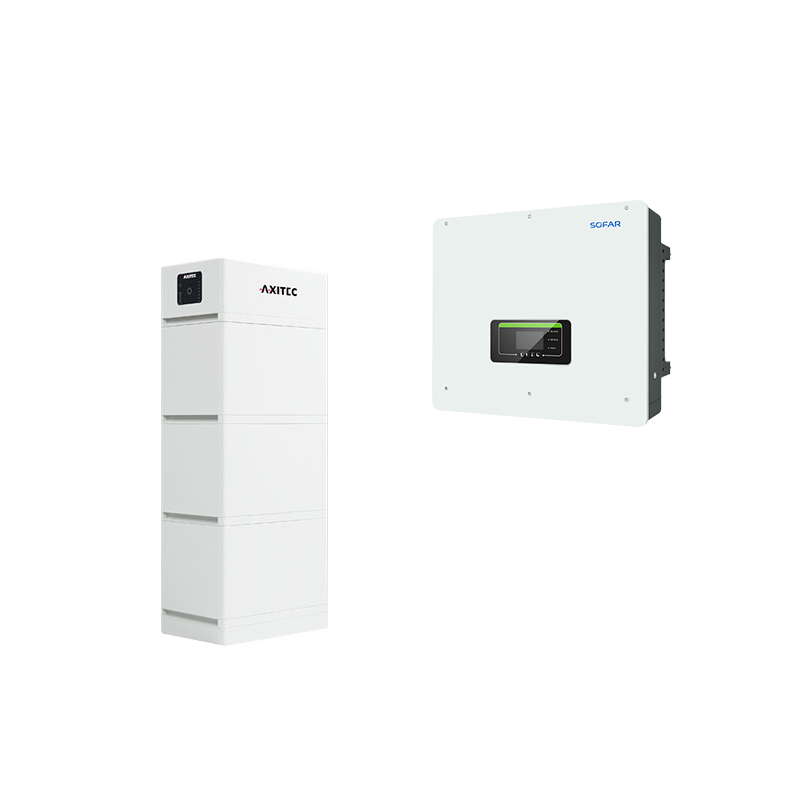

AXIstorage Li SV2 10.1 + HYD 8KTL-3PH hybrid-IV

SOFAR Solar misses the proven Hyd KTL-3PH series an update. For each string connection, up to 22.5 amp input current are now carried out. The use of new high-performance modules, also bifacial, is thus wide open. Integrated AC / DC-Surveillance protection and shadow management continue to be standardized. A direct measuring inline meter and pre-assembled cable sets facilitate the installation. For performance classes of 5 to 20 kW, in combination with the proven Axistorage SV2 store, the right FAR is always found.

Produktvorteile:

? Up to 16 amp input current per string connection

? Easier replacement power supply thanks to built-in N / PE relay

? Modular storage system, flexibly expandable

Product features System:

? AC power: 8 kW

? AC connection: 400 V, 3-phase

? Number of mppt: 2

? Max. Input current per string: 16 A

? Connector: MC4

? Interfaces: RS485, WiFi, Bluetooth, Ethernet, 4 x Dig. In (FRE)

? Protection class: IP 65

? Celebration: passive

? Dimensions: 571 x 515 x 264 mm (HxWxD)

? Weight: 33.0 kg

? Warranty: 5 years

? Included in delivery: Inline Energy Meter 80A and cable sets to memory and meters

Product features Memory:

? Battery capacity (usable): 10.1 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 288 V

? Protection class: IP55

? Dimensions: 1115 x 450 x 300 mm (HxWxD)

? Weight: BCU 21.0 kg, 3 x memory per 38.0 kg

Conclusion:

Fresh at the start-Our SOFAR hybrid memory sets. With all the functions you need plus a few more. For example, the second battery terminal allows a very flexible memory expansion as well as high charging outputs.

Delivery:

? 1 x SOFAR HYD 8 KTL-3PH Hybrid-WR, incl. Meter (Article 0157277)

? 1 x Axitec Axistor Li SV2 BCU (Article 0152359)

? 3 x Axitec AxistorA Li SV2 memory module (Article 0150761)
