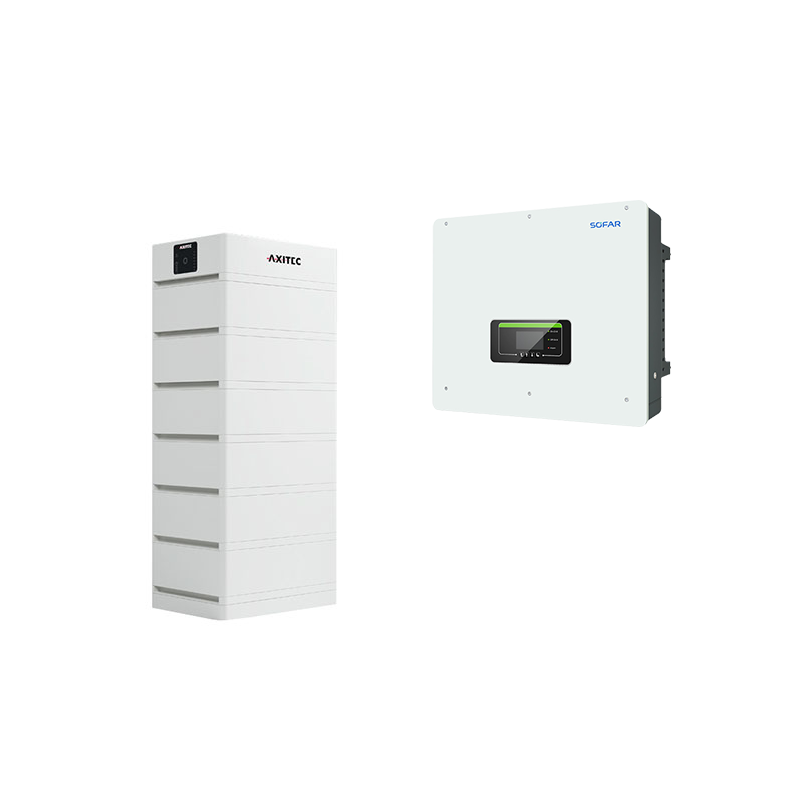

AXIstorage Li SV1 20.2 + HYD 15KTL-3PH Hybrid-WR

SOFAR Solar misses the proven Hyd KTL-3PH series an update. For each string connection, up to 22.5 amp input current are now carried out. The use of new high-performance modules, also bifacial, is thus wide open. Integrated AC / DC-Surveillance protection and shadow management continue to be standardized. A direct measuring inline meter and pre-assembled cable sets facilitate the installation. In case of performance classes of 5 to 20 kW in combination with the proven Axistorage SV1 Save you can always find the appropriate Fär your project.

Produktvorteile:

? Up to 22.5 amps input current per string connection

? 2 x 25 A Battery ports

? Easier replacement power supply thanks to built-in N / PE relay

? Modular storage system, flexibly expandable

Product features System:

? AC Power: 15 kW

? AC connection: 400 V, 3-phase

? Number of mppt: 2

? Max. Input current per string: 22.5 A

? Connector: MC4

? Interfaces: RS485, WiFi, Bluetooth, Ethernet, 4 x Dig. In (FRE)

? Protection class: IP 65

? Celebration: active

? Dimensions: 571 x 515 x 264 mm (HxWxD)

? Weight: 37.0 kg

? Warranty: 5 years

? Included in delivery: Inline Energy Meter 80A and cable sets to memory and meters

Product features Memory:

? Battery capacity (usable): 20.2 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 288 V

? Protection class: IP55

? Dimensions: 1210 x 600 x 380 mm (HxWxD)

? Weight: BCU 25.0 kg, 6 x memory each 40.0 kg

Conclusion:

Fresh at the start-Our SOFAR hybrid memory sets. With all the functions you need plus a few more. For example, the second battery terminal allows a very flexible memory expansion as well as high charging outputs.

Delivery:

? 1 x SOFAR HYD 15 KTL-3PH Hybrid-WR, incl. Meter (Article 0157281)

? 1 x Axitec Axistor Li SV1 BCU (Article 0152358)

? 6 x Axitec Axistora Li SV1 Memory Module (Article 0150754)
