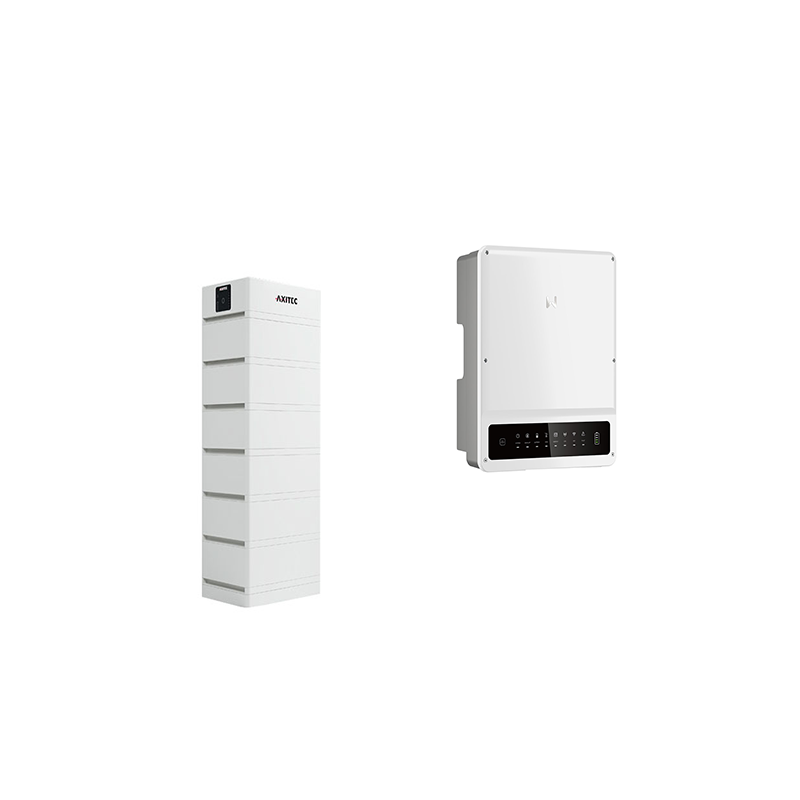

AXIstorage LI SV1 20.2 + GW10KN-ET PLUS 16A

In addition to the erasing of the DC input current to 16 ampere, the latest version of the Goodwe et Plus + Hybrid series received a real, uninterrupted UPS function Fär the backup connection. So also sensitive consumers are operated in any network situation. Combined with the axistor Li SV1 memory from Axitec Ideal Far the home use. And if it should be a bit size, can be connected to the Goodwe SEC1000S Hybrid Box up to 10 systems in parallel.

Produktvorteile:

? Emergency stream with UPS function <10ms

? 16 A input current per mpt

? Energy meter included in inverters

? Up to 10 systems cascadable

? Storage up to 23.6 kWh expandable

Product features System:

? AC Power: 10.0 kW

? Number of mppt: 2

? AC connection: 3-phase

? Communication: WiFi, RS485

? Protection class: IP66

? Celebration: passive

? Weight: 24.0 kg

Product features Memory:

? Battery capacity (usable): 20.2 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 240 V

? Protection class: IP55

? Dimensions: 1040 x 600 x 380 mm (HxWxD)

? Weight: BCU 25.0 kg, 5 x memory each 40.0 kg

Conclusion:

The combination of these two manufacturer series has been proven for a long time at the start and accordingly. The elevation of the input current to Steuze 16a allows the interconnection of each standard module now without power incorporation. The improved changeover of the backup connection, with <10ms even on UPS level, is also a decent announcement.

Delivery:

? 1 x GW 10KN-ET PLUS + (16A) Hybrid-WR, incl. Meter (Article 0152677)

? 1 x Axitec Axistor Li SV1 BCU (Article 0152358)

? 6 x Axitec Axistora Li SV1 Memory Module (Article 0150754)
