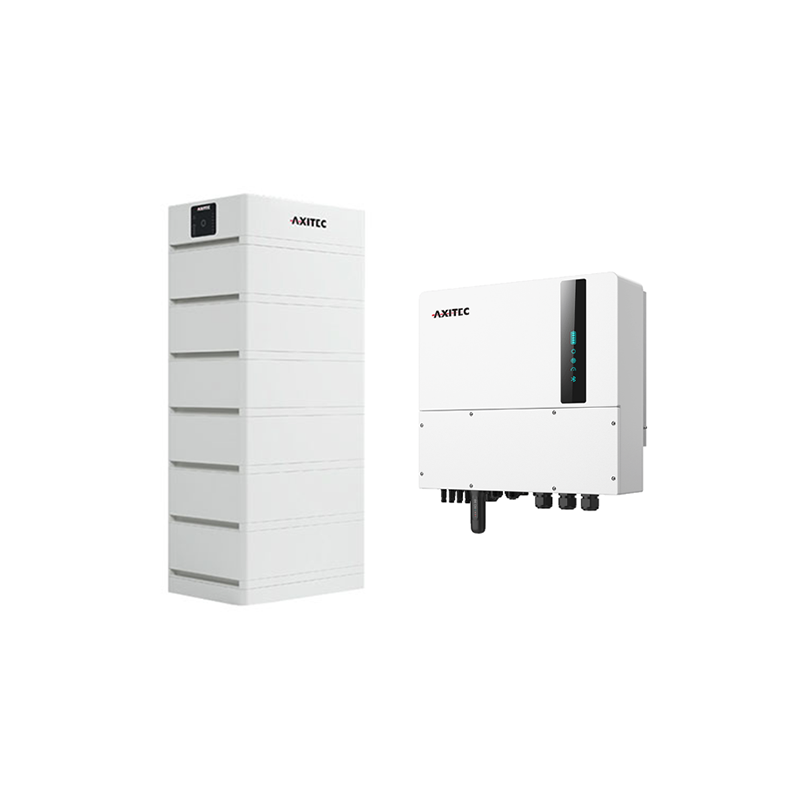

AXIstorage LI SV1 20.2 + AXIhycon 20H

Axitec from head to foot? ? In our case rather from roof to basement. AxiTec now completes your quality chain in the middle power segment of the Axihycon Hybrid inverter series. Natally compatible with the in-house high-voltage stores Axistorage Li SV1 and SV2. Up to 16 amps input current per mpp tracker as well as integrated arc also and-Surveillance protection type 2 leave little wasness open. Also a backup function on UPS Level brings more pluses.

Produktvorteile:

? Up to 20a DC input current

? 4 MMP Tracker

? Integrated AFCI and DC-Version Protection Type 2

? Backup with UPS level

? Storage up to 23.6 kWh expandable

Product features System:

? AC power: 20.0 kW

? AC connection: 3-phase

? Number of mppt: 4

? Fans per MPPT: 1

? Input current: 20 a per mpt

? DC connection: MC4

? Communication: WLAN (opt.), Ethernet, CAN, RS485

? Protection class: IP66

? Celebration: passive

? Weight: 32.6 kg

? Dimensions: 563 x 546 x 235 mm (W x H x D)

? Energy meter included in inverters

Product features Memory:

? Battery capacity (usable): 20.2 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 288 V

? Protection class: IP55

? Dimensions: 1210 x 600 x 380 mm (HxWxD)

? Weight: BCU 25.0 kg, 6 x memory each 40.0 kg

Conclusion:

The trend-Everything from one source-is now available at AxiTec. Quality of roof to cellar.

Delivery:

? 1 x axihycon 20h hybrid WR, incl. Meter (article 0156900)

? 1 x Axitec Axistor Li SV1 BCU (Article 0152358)

? 6 x Axitec Axistora Li SV1 Memory Module (Article 0150754)
