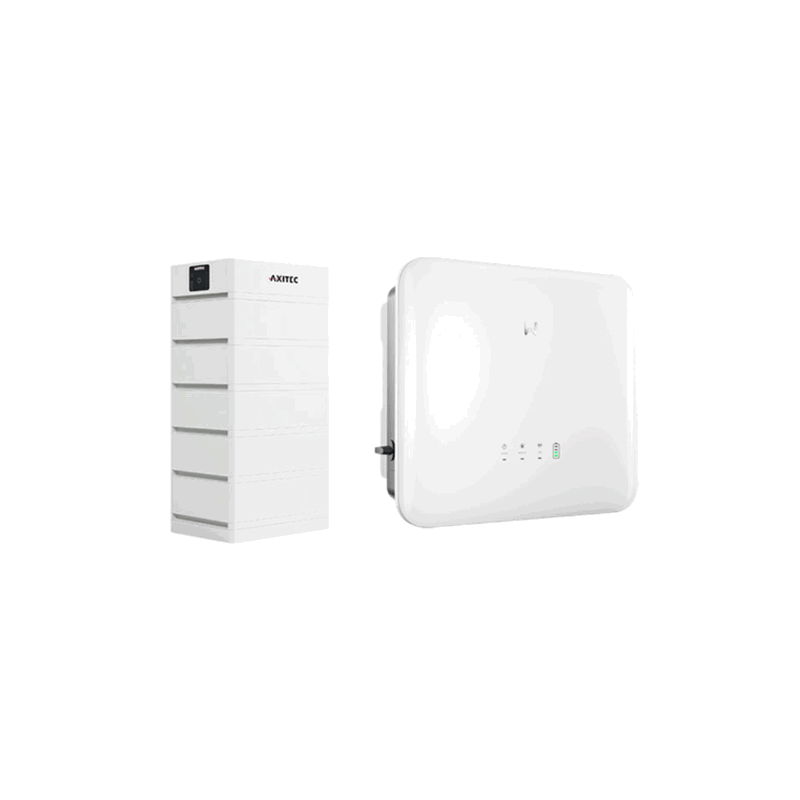

AXIstorage Li SV1 16.9 + GW8000-ET-20

The 2nd generation of the Goodwe ET-20 Hybrid series ranges from 6 to 15 kW and is ideal for many residential applications. The successor to the previous ET + series received supplements and improvements in many places. With the well-known 16 amps input current per MPP Tracker can be connected to all current module series. With integrated smart meter incl. 3 CTS and communication dongle as well as AC + DC-Surgerine protection and AFCI arc detection, the equipment is complete. The backup connector provides uninterrupted circuits. In a proven combination with the axistorage SV1 high-voltage storage system from Axitec. Reliable technology in efficient stack construction. Thanks to the expandable battery modules with up to 23.6 kWh usable capacity you are ideally suitable for home applications in the home area.

Produktvorteile:

? Emergency stream with UPS function

? 16 A input current per mpt

? 3 x CTS + WiFi-LAN dongle with Cyber Security included

? Efficient, compact stack construction

Product features System:

? AC nominal power: 8.0 kW

? Info times: 3

? AC mains voltage: 400 V

? Number of Mpp Tracker: 2

? Max. Input voltage DC: 1000 V

? AFCI arc recognition: Yes-Version 3.0

? DC - Surveillance protection: Type 2

? AC- Overlay protection: Type 2

? Storage Type: Tall Voltage

? Replacement current capable: Yes, about EPS connection

? Interfaces: RS485, CAN, WiFi, LAN

? Protection class: IP66

? Celebration: passive

? Dimensions: 460 x 496 x 221 mm (HXBXT)

? Weight: 23.0 kg

Product features Memory:

? Battery capacity (usable): 16.9 kWh

? Discharge depth DOD: 95%

? Time window extension: up to 2 years

? Cell chemistry: LFP

? Rated voltage: 240.0 V

? Protection class: IP55

? Dimensions: 1040 x 600 x 380 mm (HxWxD)

? Weight: BMS + socket: 14.0 kg, 5 x memory per 35.0 kg

Delivery:

? 1 x Goodwe GW8000-ET-20 G2 Hybrid-WR (Article 0160690)

? 1 x Axistorage Li SV1 BMS (Article 0152358)

? 5 x Axistorage Li SV1 memory module (Article 0150754)
