AXIstorage Li SV1 13.5 + AXIhycon 6H

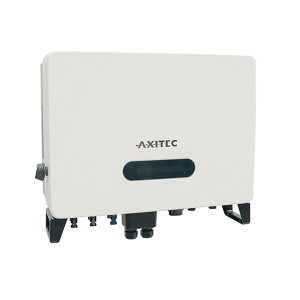

Axitec from head to toe – in our case from roof to basement. Axitec is now completing its quality chain with the new AXIhycon hybrid inverter series. Of course compatible with the in-house high-voltage storage systems AXIstorage Li SV1 and SV2. Up to 16 amps of input current per MPP tracker as well as integrated arc monitoring and type 2 surge protection leave little to be desired. A backup function at UPS level also brings further advantages.

Product advantages:

• Emergency power with UPS function < 10ms

• 16A input current per MPPT

• Integrated AFCI and DC surge protection type 2

• Storage expandable up to 23.6 kWh

Product features system:

• AC power: 6.0 kW

• AC connection: 3-phase

• Number of MPPT: 2

• Input current: 16A per MPPT

• DC connection: MC4

• Communication: WLAN (opt.), Ethernet, CAN, RS485

• Protection class: IP66

• Cooling: passive

• Weight: 32.6kg

• Dimensions: 600 x 500 x 230 mm (W x H x D)

• Energy meter included with inverter

Product features memory:

• Battery capacity (usable): 13.5 kWh

• Time window extension: 5 years

• Cell chemistry: LFP

• Rated voltage: 192V

• Protection class: IP55

• Dimensions: 870 x 600 x 380 mm (H x W x D)

• Weight: BCU 14.0 kg, 4x storage 36.0 kg each

Conclusion:

The new trend “everything from a single source” is now also available from Axitec. Quality from roof to basement.

Scope of delivery:

• 1x AXIhycon 6H Hybrid-WR, including meter (article 0154680)

• 1x Axitec AXIstorage Li SV1 BCU (article 0152358)

• 4x Axitec AXIstorage Li SV1 storage module (article 0150754)
