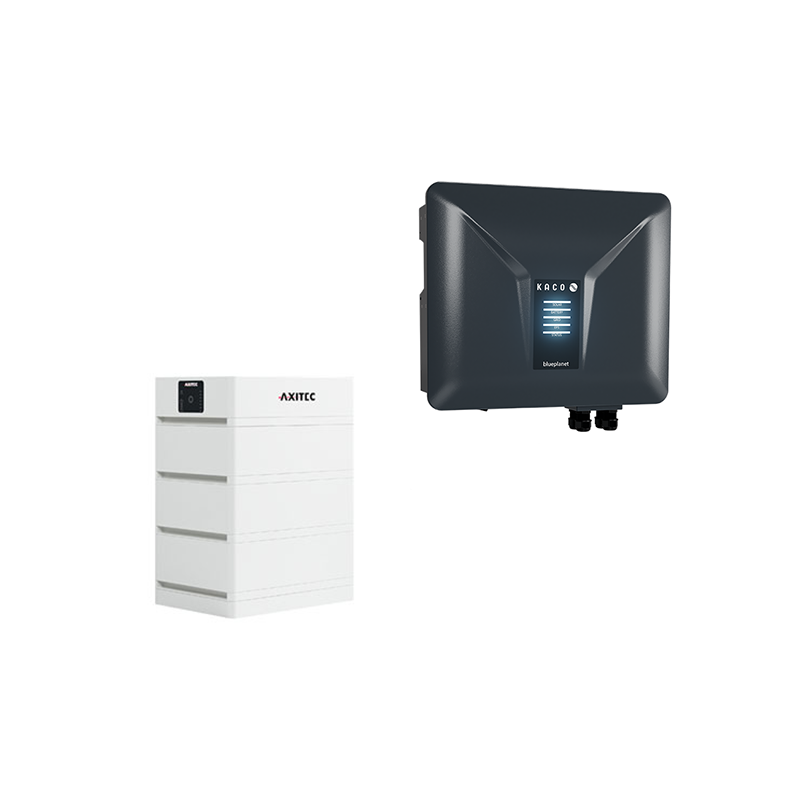

AXIstorage Li SV1 10.1 + blueplanet 8.0 NH3 M3

With the new NH3-M3 series, Kaco is introducing its new hybrid inverters in 3 performance classes from 8 to 12 kW. In addition to a module release of up to 200%, the devices received 3 independent MPP trackers for universal use. The integrated backup connection shines with a switching time <10ms to UPS level. Even the application as a pure off-grid system is approved. The high-voltage system from Axitec combined here is even certified according to VDE 2510-50 and offers compact storage power.

Product advantages:

? Hybrids in new, attractive performance classes

? 3 MPP trackers with 16A input current each

? Backup connection with <10ms switching time

? Backup and island operation without additional activation

? Storage in the proven stack concept

? Certified according to VDE 2510-50

Product features system:

? AC power: 8.0 kW

? Number of MPPT: 3

? AC connection: 400V,  3-phase

? Communication: Wifi, 4G, LAN, RS485, CAN

? Interfaces: 2 x DO, 4 x DI (FRE)

? Protection class: IP66

? Cooling: passive

? Weight: 28.5 kg

? Dimensions: 545 x 530 x 230 mm (W x H x D)

? Included in delivery: 3 x transducers

Product features memory:

? Battery capacity (usable): 10.1 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 144V

? Protection class: IP55

? Dimensions: 700 x 600 x 380 mm (HxWxD)

? Weight: BMS 14.0 kg, 3 x storage units 36.0 kg each

Conclusion:

This combination has the best conditions for flexible and reliable applications.

Scope of delivery:

? 1 x Kaco blueplanet hybrid 8.0 incl. CT's (article 0154927)

? 1 x AXIstorage Li SV1 BMS (Item 0152358)

? 3 x AXIstorage Li SV1 Energy Pack (Item 0150754)
