PYL-PELIO-WALL-MOUNT

Wall Mounting Installation Kit for the Pylontech Pelio-L-5.12 LV Battery Module

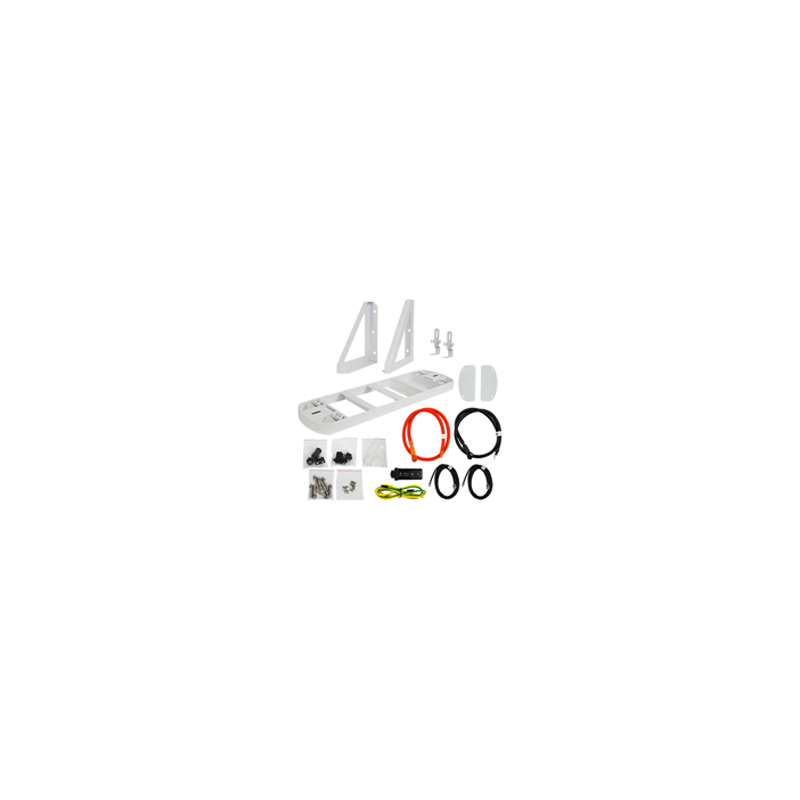

This wall mounting kit includes the following:

1. PELIO- left bracket x 1
2. PELIO- right bracket x1
3. PELIO- Base x1
4. PELIO-1.2 mcable /4AWG positive x1
5. PELIO-1.2 mcable /4AWG negative x1
6. PELIO-2.5 m RS485 communicationcable/RJ45 x1
7. PELIO-2.5 m CAN communicationcable/RJ45 x1
8. Communication port x2
9. PELIO grounding cable x1
10. PELIO- anti-tipping bracket x2
11. TS51100-Pelio/outlet bracket x2
12. Screw /M5×12    x2
13. Screw /M4×6      x4
14. Screw /M6X16    x4
15. Expansion screw/M8*60  x8
16. TSP120-R- waterproof cover x4
17. PELIO- handle baffle x2
18. Nylon countersunk head screw/ M5×10    x10
19. WIFI block x1

Attention: Parallel connection communication cable is not included, please call or send us an email if you need one!!
