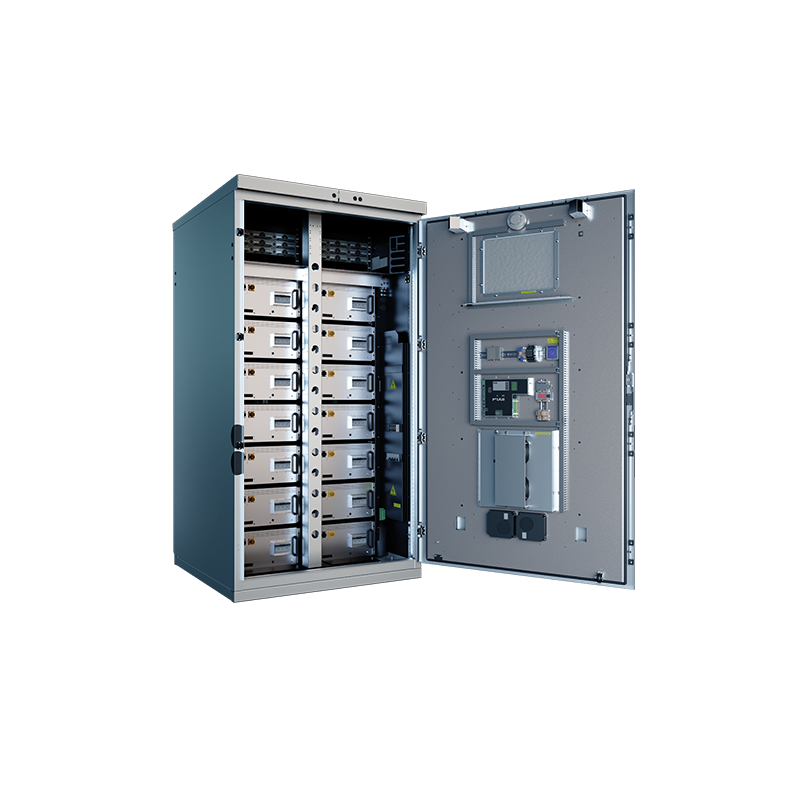

PowerShaper XL 60 kW/200 kWh, Fan+Filter

The heart of our commercial storage system from Pixii in Norway is a small black box ? the PixiiBox. Eighteen of these bidirectional inverters, each with 3.33 kW, together with 14 battery slots, form the Pixii PowerShaper XL commercial storage system ? the new maxi version of the series. The PowerShapers can be cascaded up to the MWh range. Depending on the application, they are also available in versions for air-conditioned outdoor use, for dusty or noise-sensitive environments.

Product advantages:

? Maximum flexibility thanks to comprehensive scalability

? Flexible installation thanks to intelligent heating and ventilation system

? Connection to higher-level energy management possible

? Integrated coupling switch for central NA protection in accordance with VDE AR-4105

? Cascading: possible with entire racks, up to several MWh

Product features:

? Capacity (usable): 180 kWh

? Total charging power: 60 kW

? Charging line per Pixiibox: 3.3 kW

? Charging rate: 0.3 C

? Application: peak shaving, own consumption, arbitrage, etc.

? Visualisation: locally via web server, connection to higher-level management possible

? Cell chemistry: LFP (lithium iron phosphate)

? Installation location: indoor/outdoor

? Cooling: controlled fans with filter system

? Protection class: IP55

? Certification: VDE 4105, 4110 (prototype certificate)

? Rack dimensions: 598 x 1991 x 651 mm (W x H x D)

? Total weight: 2000 kg (approx. 250 kg per rack, 2 kg per Pixiibox, approx. 120 kg per battery unit)

? Product warranty: 5 years

Set contains:

? 1 x Cabinet PowerShaper XL with ventilation (item 0157471)

? 18 x PIXIIBOX 48/3300, PowerShaperID power module (item 0152753)

? 14 x LFP PowerShaperXL battery module (item 0157472)
