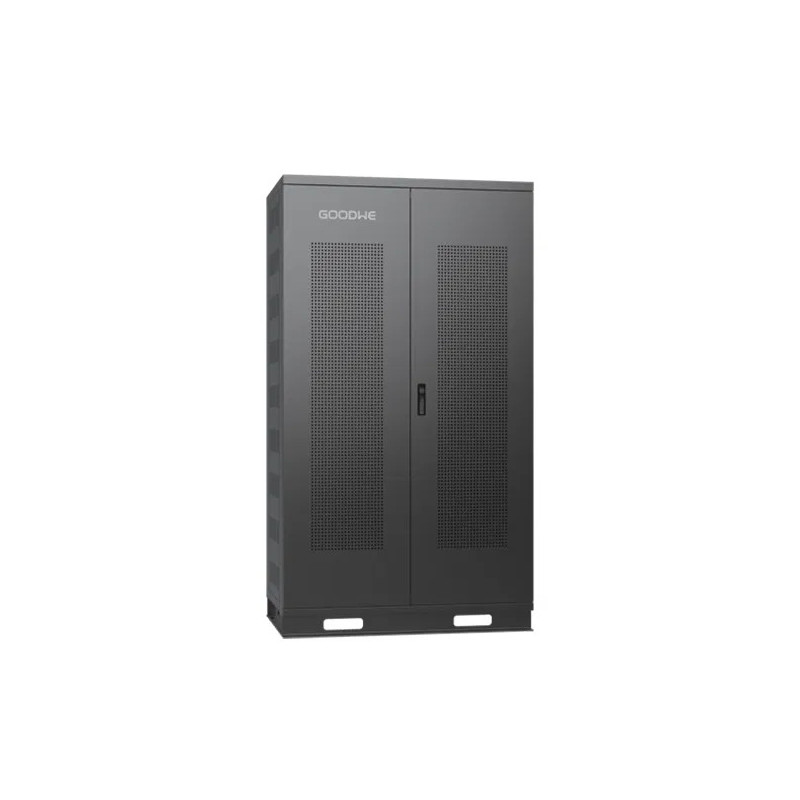

Lynx C Commercial Storage Rack

The Goodwe Lynx C commercial storage system, with up to 156.0 kWh of usable capacity, is the ideal complement to the new large ET hybrids with 40 and 50 kW. By connecting up to three units in parallel, a usable capacity of 468 kWh can be achieved. In combination with the Goodwe STS Box, reliable switching to backup mode, including connection to a power generator, is also possible. Even larger systems are possible by connecting the system in parallel.

Product advantages:

• Transport rack easily with a forklift

Product features:

• Number of battery slots: 11

• Cascadable: up to three units in parallel

• Communication: CAN + RS485

• Cooling: active

• Protection class: IP21

• Dimensions: 1650 x 1155 x 730 mm (H x W x D)

• Weight: 205.0 kg
