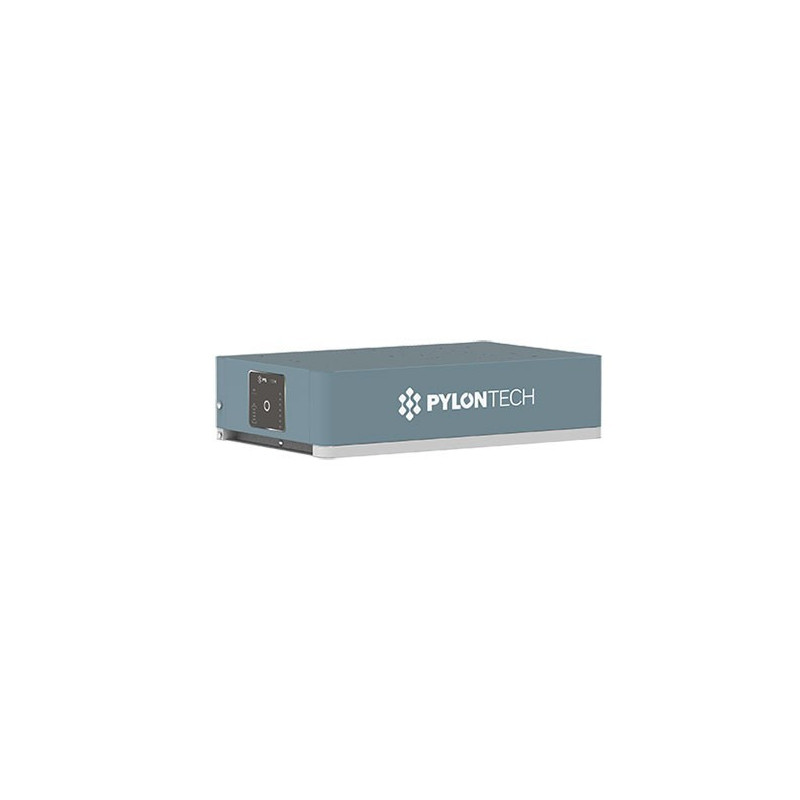

FORCE-H1 FC0500-40S-V2

Product information "FORCE-H1 FC0500-40S-V2"

Compact, reliable and powerful - these are the Force H1 + H2 high-voltage storage systems from Pylontech. With their proven and efficient stacked design, these power packs always find a place. With their expandable battery modules with up to 23.6 kWh usable capacity, they are ideal for use in the home.

Product features Storage:

• Device status: SOC and status LED

• Interfaces: CAN

• Cascadable: up to 6 towers in parallel (combiner box required)

• Protection class: IP55

• Cooling: passive

• Dimensions: 190 x 600 x 380 mm (H x W x D)

• Weight (BMS + base): 14.0 kg

Suitable for storage modules of the FH48074 series.
