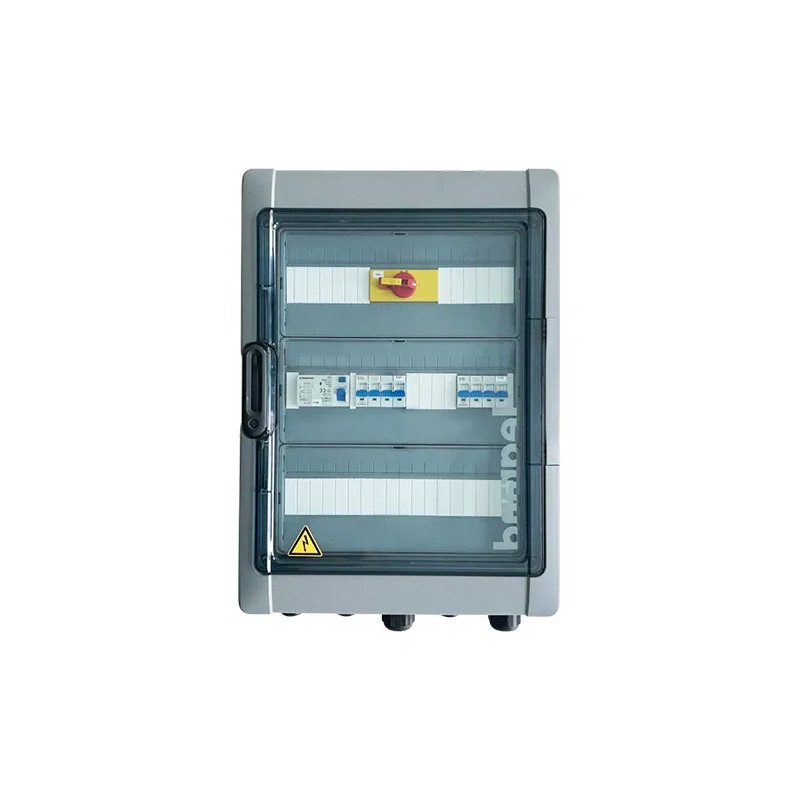

Emergency power box 63 A, all-pole

The 63A emergency power box is the ideal addition if you use the backup connection on your Kaco hybrid system. Smaller consumer circuits can be operated directly on the device without interruption in the event of a power failure. For circuits with larger consumers, this can lead to overloading and temporary shutdown of the system. These circuits are therefore only switched on manually after the active consumer load has been checked. All outgoing circuits, protective elements and disconnection points are already pre-installed in the Kaco emergency power box.

Product advantages:

• Supply of several circuits in the event of a power failure

• Manual connection ensures stable operation

• Can also be used as a bypass box

Product features:

• Max. Through current: 63.0 A

• AC connection: 400 V, 3-pole

• Type of mains disconnection: all-pole (3P+N)

• Cable cross-section: 16 mm²

• Protection class: IP65

• Dimensions: 610 x 448 x 220 mm (HxWxD)

• Weight: approx. 5.0 kg

Compatible with Kaco blueplanet hybrid 6.0 NH3 M2, blueplanet hybrid 8.0 / 10.0 / 12.0 NH3 M3
