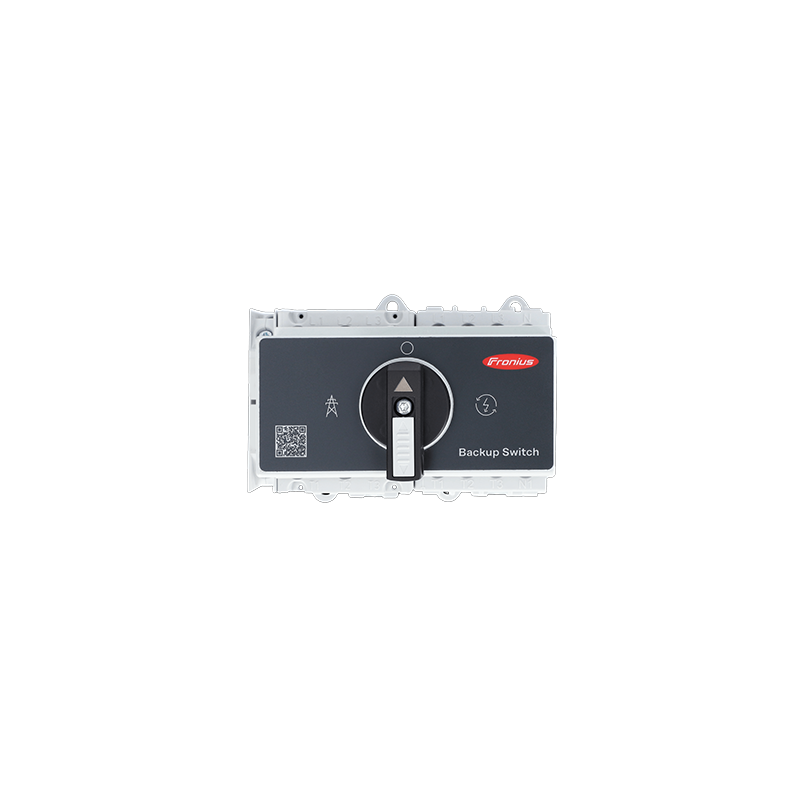

Backup switch for GEN24* / Verto Plus

A power cut like this is always inconvenient, one swift digger driver and bang - the whole street goes dark. Even if you don't really want to plan for such a situation, the technical possibility of an independent backup power supply creates an unimagined sense of security. Both the GEN24 plus and the new Verto Plus series can be conveniently supplemented with the Fronius Backup Switch at any time. With the manual switch, all important loads are literally supplied with power again in no time at all. For all those for whom 3 kW emergency power via the Fronius PV Point is not quite enough.

Product advantages:

- Can be used for 1- and 3-pole grid connections

- Compatible with Fronius Primo GEN24*, Symo GEN24 plus* and Verto Plus

- Cost-effective solution with great effect

- Connection of complete house connection possible

Product features:

- Max. Continuous current: 63.0 A

- AC connection: 230 V, 1-pole and 400 V, 3-pole

- Type of mains disconnection: 3-pole

- Mains type: can be used for all mains types

- Max. Cable cross-section: 16 mm²

- Mounting: on top-hat rail in switch cabinet

- Protection class: IP20

- Dimensions: 7 HP / 91 x 126 x 64 mm (HxWxD)

- Included in the scope of delivery: mandatory information sticker ‘Emergency power supply’

*Due to the design of the Fronius Symo GEN24 3.0 - 5.0 and all Primo GEN24-US versions, a full backup solution cannot be implemented.
