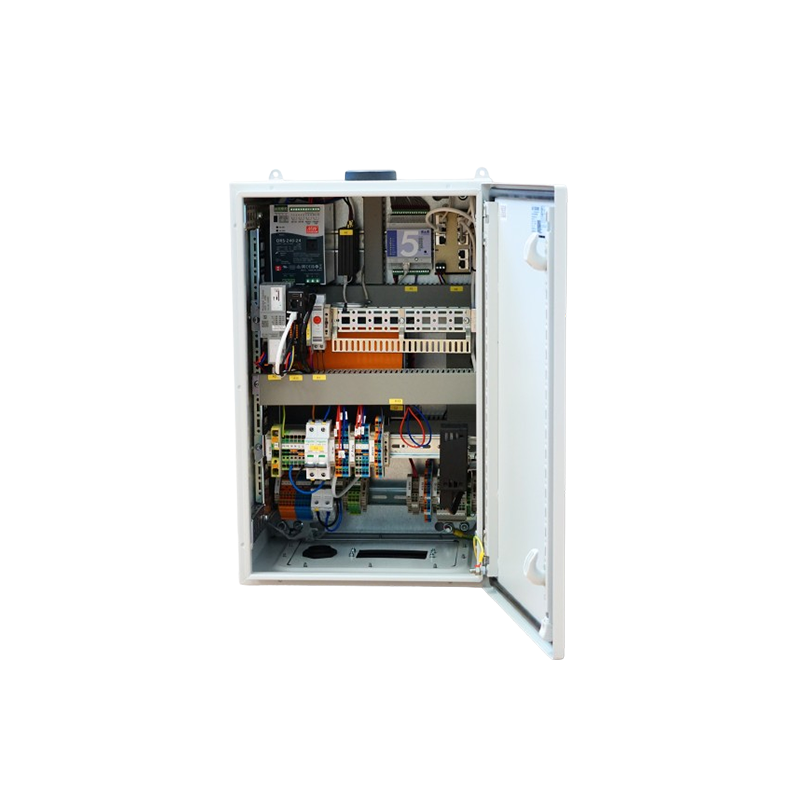

ArchiteX AX600 Pro

This unit contains only the basic set of components. The exact configuration is project-specific. Additional components must be ordered separately.

Check compatibility with the project components.

Additional software options and commissioning support must be added separately.

Birdtical's ArchiteX AX600 offers smart energy management for projects up to 950 kW with medium-voltage connections. Thanks to its IP66 rating, the ready-to-connect box is suitable for both indoor and outdoor use. The factory-installed hardware can be customized to meet project specifications with additional interfaces, loggers, and other components. This enables numerous use cases, from optimization to trading. The unit is delivered fully pre-configured and tested. An integrated UPS backup battery ensures reliable system operation. Intuitive user interfaces and qualified support guarantee quick and efficient commissioning. The hardware is delivered fully pre-configured and tested.

Product Benefits:

? Ready-to-connect plug-and-play solution

? Optimized for quick commissioning

? Comprehensive hardware and service catalog for additional options

Product Features:

? Integrated basic components: EMS controller, PLC device, FWA controller, EZA controller according to VDE-AR-N 4110 (Pro)

? Optional components: Fiber optic converter, TCP module (8xDI/8xDO), TCP module (4xAI/4xAO), PV logger, CSMS controller, firewall device

? Maximum number of connected hardware: 3 x PV loggers, 5 x commercial storage systems, 12 x EV chargers

? Permissible grid connection: On-grid

? Grid level: Low or medium voltage

? Country approval: Germany

? Grid certification: VDE-AR-N 4110

? System certification: Simple system certificate type B

? Communication: 16-port Ethernet, 4G

? Protection class: IP66

? Dimensions: 600 x 380 x 330 mm (H x W x D)

? Weight: approx. 37.0 kg
