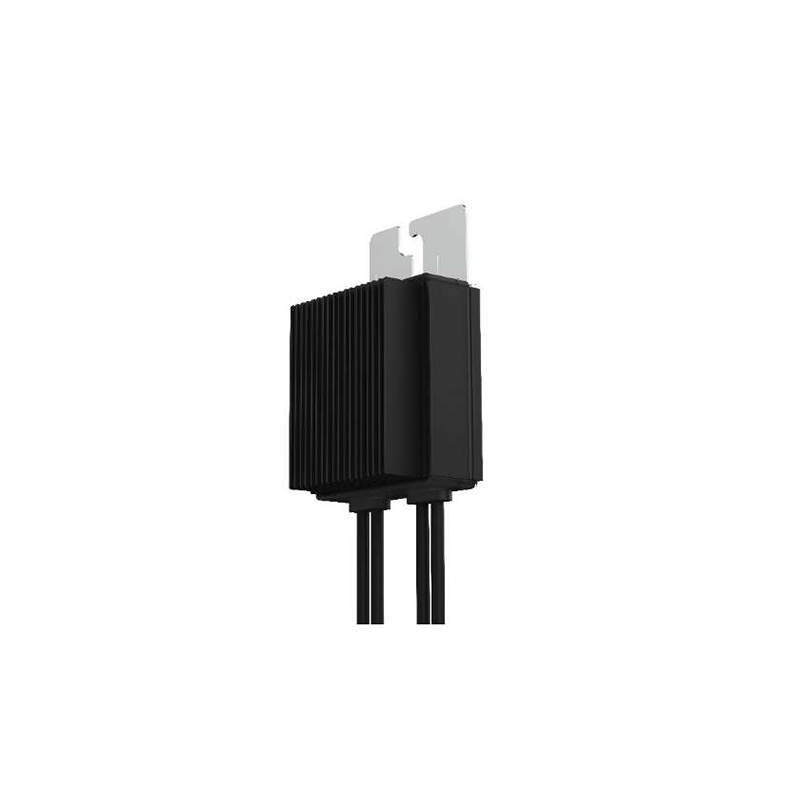

MERC-1300W-P optimiser

If you describe the small Huawei smart PV optimizers as the proverbial cherry on the cake, the commercial version is even bigger. With 1300 W, the smart module controllers are suitable for multiple module connections. Connection cables with 5.1 m create the necessary radius. All proven features from communication to arc detection are on board. Of course, the visualization takes place in the Huawei FusionSolar portal including the app.

Product advantages:

? The smart addition to your major Huawei project

? Extra-long strings possible

? Integrated arc detection

? Monitoring in the Huawei app

Product features:

? Rated input power: 1300 W

? Short circuit current Isc: 20.0 A

? MPP max. voltage range input: 105 V

? MPP min. voltage range input: 12.5 V

? Max. input voltage DC: 125 V

? Interface: MBus/ Powerline

? DC connector type: MC4

? Length of cable output plus: 10 cm

? Length of cable output minus: 290 cm

? Weight: 0.800 kg

? Warranty: 25 years

? Compatible with: Huawei SUN2000-12 - 25KTL, SUN2000-20-50KTL-M3 (note string length specifications)
