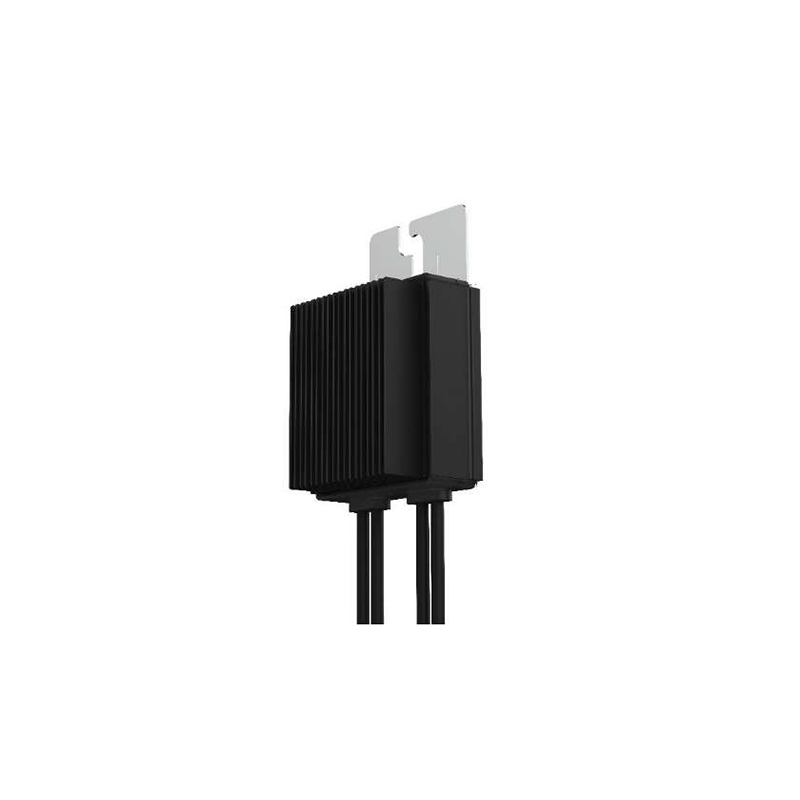

MERC-1100W-P optimiser

If the small Huawei smart PV optimizers are already the proverbial cherry on the cake, the commercial version is even bigger. With 1100 W, the smart module controllers are suitable for multiple module connections. The 2.9 mm connection cable creates the necessary radius. All proven features from communication to arc detection are on board. Of course, visualization takes place in the Huawei FusionSolar portal including app.

Product advantages:

? The smart addition to your major Huawei project

? Extra-long strings possible

? Integrated arc detection

? Monitoring in the Huawei app

Product features:

? Rated input power: 1100 W

? Short circuit current Isc: 20.0 A

? MPP max. voltage range input: 105 V

? MPP min. voltage range input: 12.5 V

? Max. input voltage DC: 105 V

? Interface: MBus/ Powerline

? DC connector type: MC4

? Length of cable output plus: 10 cm

? Length of cable output minus: 510 cm

? Weight: 0.800 kg

? Warranty: 25 years

? Compatible with: Huawei SUN2000-12 - 25KTL, SUN2000-20-50KTL-M3 (note string length specifications)
