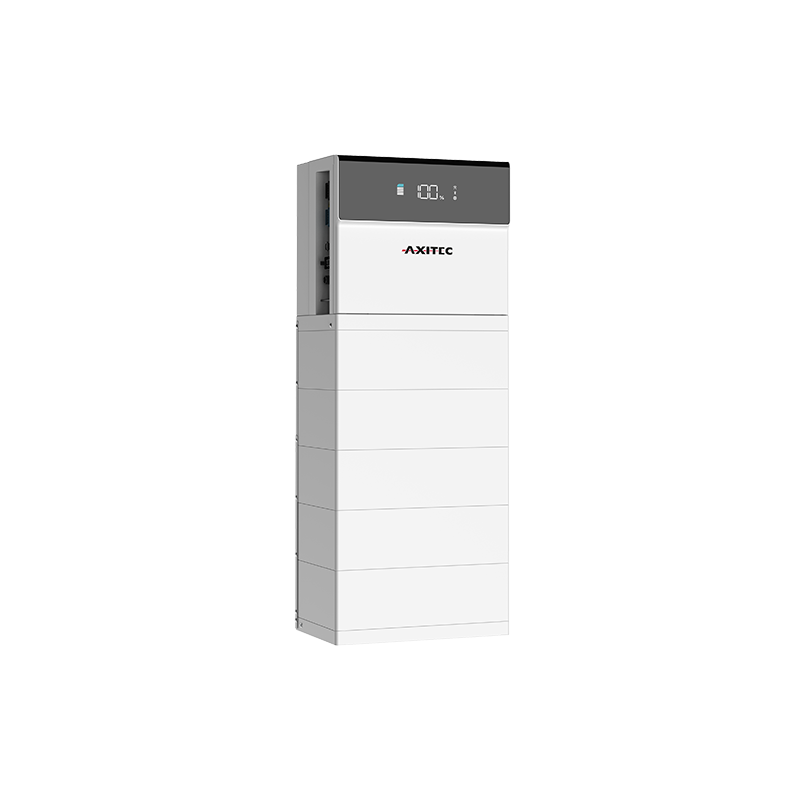

AXIhycon ONE Multi-Power - 24.3

Axitec from head to toe?or in our case, from roof to basement. Axitec is expanding its quality product lineup with the compact AXIhycon ONE storage system, offering selectable power classes ranging from 8 to 15 kW. The hybrid inverter, featuring an integrated BMS, mounts directly onto the company?s own Li SV3 storage modules, creating a seamless, integrated solution. These 3-phase systems support a usable capacity of 10 to 34 kWh; connecting up to three hybrid units in parallel allows for a total capacity of 102 kWh. The backup connection ensures power supply to even sensitive loads, with a switchover time of less than 10 ms.

Product Advantages:

? New Multi-Power Concept*

? Up to 40 A DC input current

? Compact storage system from a single source

? BMS integrated into the inverter

? Up to 34 kWh usable storage capacity

System Product Features:

? AC Rated Power: 8 / 10 / 12 / 15 kW (selectable)

? Grid Connection Phases: 3

? AC Grid Voltage: 400 V

? Number of MPPTs: 3

? Inputs per MPPT: 3

? Max. DC Input Voltage: 1000 V

? DC Surge Protection: Type 2

? AC Surge Protection: Type 2

? AFCI Arc Fault Detection: Yes

? DC Connectors: MC4

? Battery Voltage Level: High Voltage

? Communication: Wi-Fi, Ethernet

? Protection Class: IP55

? Cooling: Active

? Dimensions: 540 x 350 x 365 mm

? Weight: 40.0 kg (incl. base)

? Energy Meter + 3 x CTs (120 A / 40 mA secondary current) included in delivery

Storage Product Features:

? Battery Capacity (Usable): 24.3 kWh

? Depth of Discharge (DoD): 95%

? Expansion Time Window: Up to 2 years

? Cell Chemistry: LFP

? Nominal Voltage: 512.0 V

? Protection Class: IP55

? Dimensions: 1040 x 540 x 350 mm

? Weight: BMS + Base: 14.0 kg; 5 x Storage Modules (39.0 kg each)

* The power class setting can only be configured once, during the initial setup. Changing the power output at a later time is not supported by Axitec.

Scope of delivery:

- 1 x Axitec AXIhycon ONE MultiPower Hybrid Inverter 8?15 kW incl. Meter + CTs (Item 0164496)

- 5 x Axitec AXIstorage Li SV3 Storage Module (Item 0161826)
