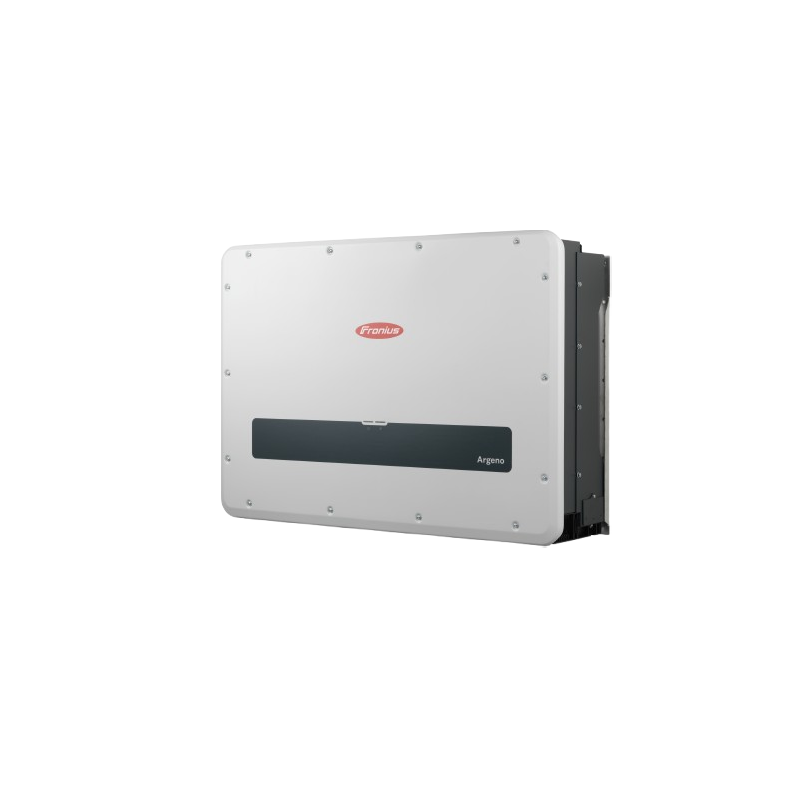

Argeno 125
  • Argeno 125

Argeno 125

0158404
Fronius
Argeno 125
€9,500.91
Tax included
Quantity
6 Items

Ask about the product on WhatsApp
Description

An additional Plant Controller / EMS is required to connect radio ripple control receivers, power control, etc.

The Argeno 125 from Fronius is the new player for the commercial segment. With 10 MPP trackers and 30 amps of input current each, it offers a high degree of flexibility. Maximum safety thanks to the integrated arc detection Arc Guard and overvoltage protection type 1+2 on AC and DC connections. Thanks to open interfaces, there are universal application options for energy management with Wattpilot, Ohmpilot & Co. The integrated data logger also has numerous connection options for external control signals or load management.

Product advantages:
? 30 A input current per MPPT / 20 A per string
? Integrated and interchangeable AC+DC overvoltage protection type 1+2
? Integrated data logger + web server

Product features:
? AC power: 125.0 kW
? AC connection: 400 V, 3-phase
? Number of MPPT: 10
? Connections per MPPT: 2
? DC input current: 30 A per MPPT / 20.0 A per string
? DC connector: Phoenix Contact SUNCLIX (counterparts included in the scope of delivery)
? Overvoltage protection: Type 1+2 on AC+DC with interchangeable elements
? Communication: 2 x Ethernet
? Interfaces: WSD (Wired Shutdown)
? Protection class: IP66
? Cooling: active
? Dimensions: 1070 x 755 x 330 mm (H x W x D)
? Weight: 90.0 kg
Product Details
0158404
6 Items
