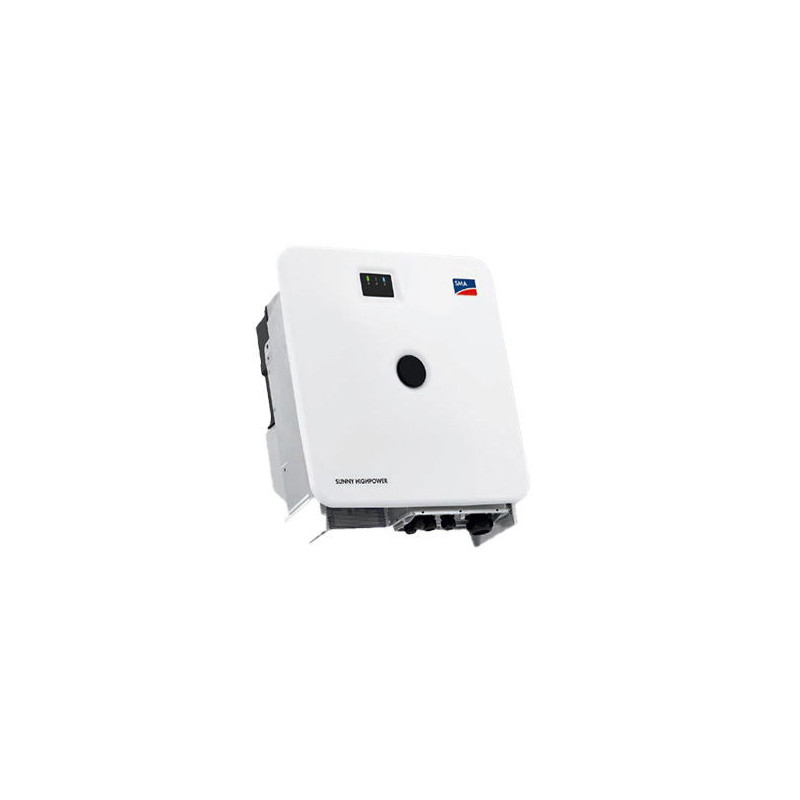

The Sunny Highpower PEAK3 series from SMA is the central component for large PV power plants. System voltages up to 1500 V DC and the use of customer-specific generator connection boxes enable efficient project calculation. Thanks to high-quality system components, there is no derating up to a temperature of 50C.
Product advantages:
?Up to 200% DC/AC ratio possible
?AC+DC type 2 overvoltage protection
Product features:
?AC rated power: 150.0 kW
?Feed-in phases: 3
?AC mains voltage: 600 V
?Number of MPPT: 1
?Max. DC input voltage: 1500 V
?DC overvoltage protection: Type 2
?AC overvoltage protection: Type 2
?DC connector: Bolt terminal for cable lug up to 300 mm?
