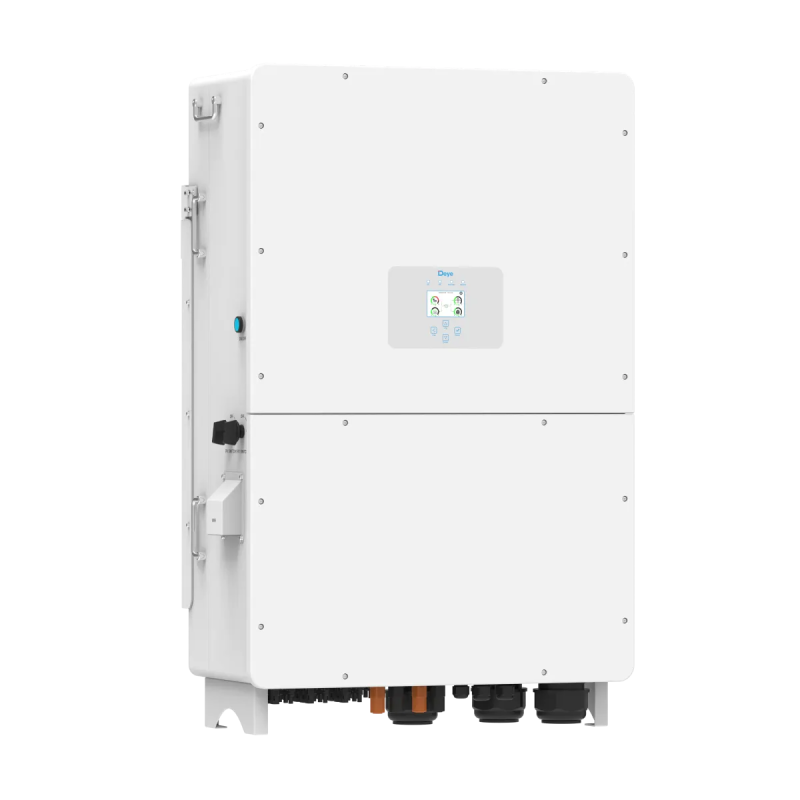

Deye SUN-125K-SG02HP3-EU-GM10 HV Hybrid inverter

Deye Sun-125-SG02HP3-EU Three-phase Hybrid Inverter

The Deye Sun-125k-SG02HP3-EU three-phase hybrid inverter is specially designed for powerful industrial and commercial solar energy systems. The nominal alternating current capacity of 125 kW makes a stable and flexible energy supply possible for larger halls, factories, logistics centers or complex C & I projects, in combination with battery energy storage.

This model series is compatible with high-voltage batteries , This makes it an ideal choice for systems where the goal is to maximize their own consumption, reduce peak loads or achieve Neton dependence.

High capacity for commercial and industrial projects.

The power of 125 kW is specifically suitable for consumers with a high energy requirement. The system is suitable for a large solar panel installation and can control high capacity high voltage energy storage systems.

The device supports the parallel operation of a maximum of 10 inverters, allowing the design of scalable systems, even for larger investments.

Integration of high-voltage batteries

The device works with high-voltage lithium ion batteries over a wide voltage range. The maximum loading and discharging current of 200 A makes efficient management of high capacity energy storage systems.

The 6 configurable daily periods make an accurate timing of loading and discharging the battery, so that the system can be optimized for tariff-based operation, peak load reduction or collaboration with aggregators.

100% handling of phase asymmetry

Three-phase taxes are rare in the practice of industrial environments. The DeEye 125K-SG02HP3-EU series supports 100% asymmetrical output, so that the system can be accurately tailored to the actual consumption patterns.

This is particularly advantageous at locations where the load on each phase varies considerably.

AC coupling and system expansion options

The model also supports AC-coupled configurations, making it possible to equip existing solar energy systems with energy storage.

This can be an ideal solution for companies that want to integrate energy storage into an existing system.

Protection and reliability of industrial quality.

The inverter has an IP65 protection class, making it suitable for installation outdoors. Built-in security functions - Overcurrent protection, overvoltage protection, insulation monitoring, DC polarity protection and optional AFCI - contribute to a long-term reliability.

A high efficiency up to 98% ensures that the system works economically even in high power.
