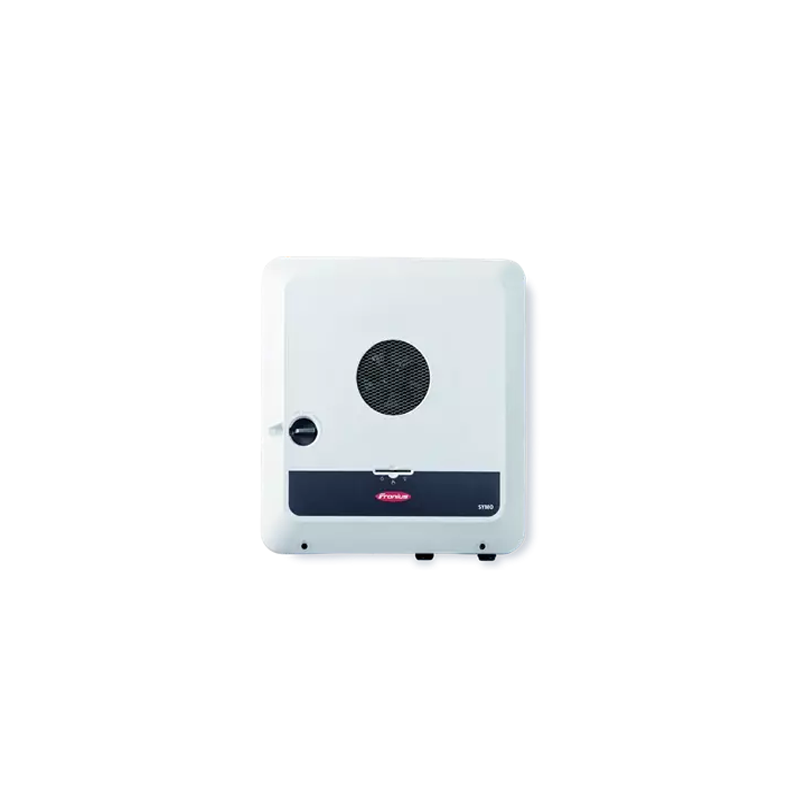

Symo GEN24 SC 12.0 Plus

The Symo GEN24 12.0 SC Plus is the largest member of the GEN24 family from Fronius. Like its smaller brothers, the SC is available as a fully-fledged hybrid or battery-ready. In this version, recognisable by the ?Plus?, the storage connection is already activated ex works. Single-phase emergency power with a maximum output of 3 kW can be conveniently implemented via the integrated smart PV point.  With a small upgrade, this can now also be used in continuous operation. All other functions and interfaces remain as good as ever.

Product advantages:

? Emergency power via Fronius PV-Point, optionally also for continuous use

? Backup power possible with Fronius Backup Switch and Controller

Product features:

? AC power: 12.0 kW

? AC connection: 400V, 3-phase

? Number of MPPT: 2

? DC input current: MPPT 1 - 28.0 A, MPPT 2 - 14.0 A

? Battery type: High-voltage

? Communication: WLAN, Ethernet, 2 x RS485

? Interfaces: 6 x DI (FRE), 6 x DO

? Protection class: IP66

? Cooling: active

? Dimensions: 595 x 529 x 180 mm (H x W x D)

? Weight: 22.8 kg
