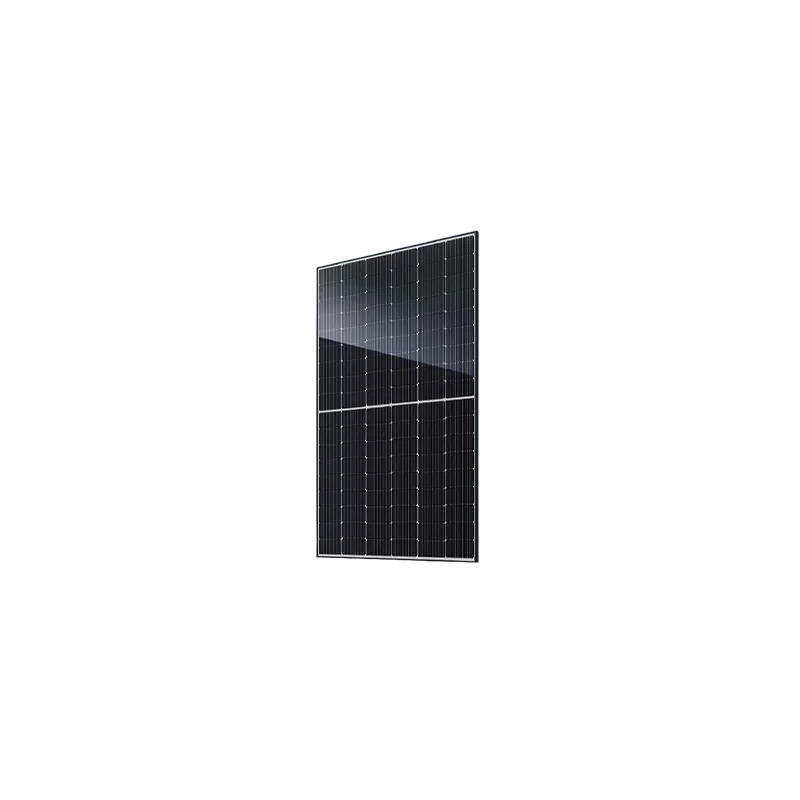

The JAM54D40 LR solar module from JA Solar has an output of 465 Wp and a module efficiency of up to 23.3 %. Thanks to state-of-the-art n-type cell technology and MBB half-cell design, the module achieves high energy yield and low power loss over its entire service life. The reduced LID (light-induced degradation) guarantees particularly stable initial performance. The robust double-glass construction reliably protects the module from weather influences. Together with an improved temperature coefficient and optimised low-light performance, the module achieves higher energy yields, even under demanding conditions. This makes it ideal for challenging rooftop installations. An elegant black frame gives the module a modern, high-quality design. JA Solar offers a 30-year performance warranty and a 25-year product warranty for this product.
Product advantages:
• High energy yield
• Low power loss
• Robust double-glass construction
• Improved temperature coefficient
• Optimised low-light performance
• Long warranty periods
Product features:
• Power rating Pmax: 465 Wp
• Cell type: monocrystalline
• Bifacial: no
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2A
• Cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL type 38 / Class C
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 22.0 kg
• Warranty: 30 years performance warranty and 25 years product warranty
