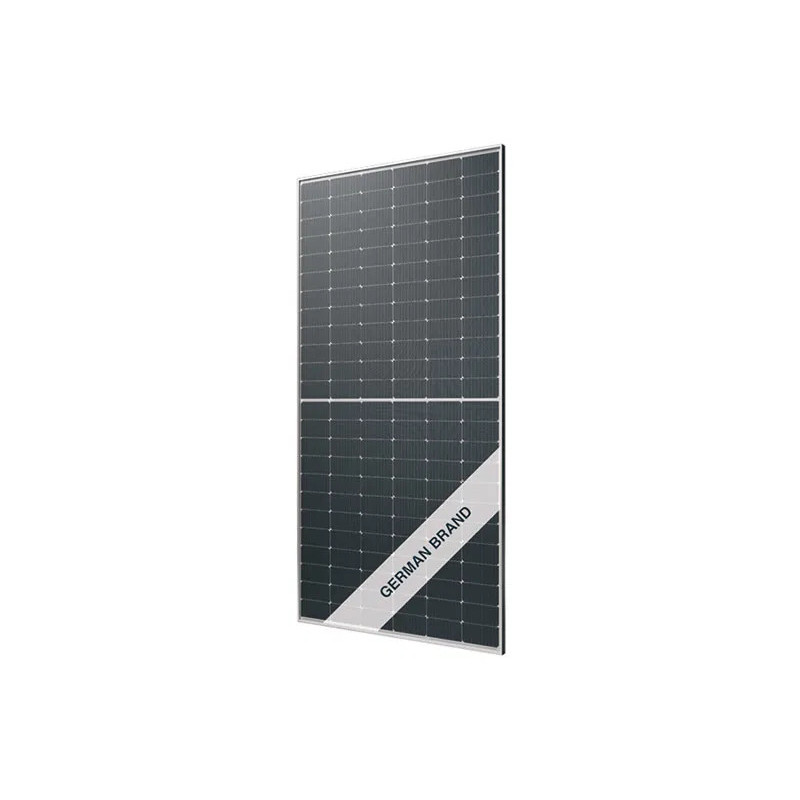

The AXITEC AXIbiperfect GXXL TB Extreme modules are specially designed for use in particularly challenging environmental conditions. Thanks to the robust double-glass construction with a glass thickness of 2x 2.8 mm, they offer exceptionally high mechanical resilience – ideal for regions with heavy snowfall, wind or extreme temperature fluctuations. The specially designed frame profile also provides increased stability in adverse weather conditions. As further proof of their resilience, the modules are rated HW4, which means they are protected from damage even in the event of heavy hail. The AXIbiperfect GXXL TB Extreme offers you a solution that guarantees maximum safety and durability, even in extreme operating environments, which is why Axitec offers a 30-year warranty on this product.
Product advantages:
• For alpine applications up to an altitude of 3,000 metres
• Suitable for extreme weather conditions
• High stability thanks to reinforced frame design
• 30-year performance and product warranty
Product features:
• Power rating Pmax: 585 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): transparent
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2A
• Cable length: 1.65 m
• Glass thickness: 2.8 mm (front) / 2.8 mm (back)
• Max. surface load capacity: 8400 Pa (snow) / 6600 Pa (wind)
• Fire protection class: C (UL 790)
• Dimensions: 2324 x 1154 x 35 mm (L x W x H)
• Weight: 43.0 kg
• Warranty: 30 years performance warranty and 30 years product warranty
