DEYE-SUN-20K-SG01HP3-EUAM2

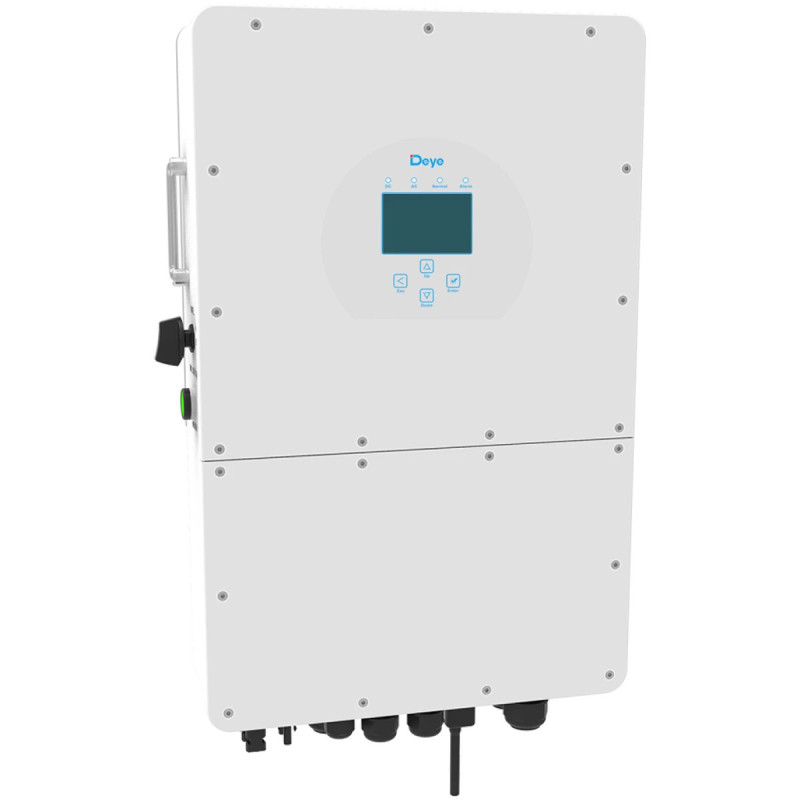

The Deye 20kW SG01HP3-EU-AM2 Hybrid HV 3-phase inverter is the ideal choice for anyone looking for a reliable and efficient solution for powering their home or business. This hybrid inverter allows you to maximize the use of solar energy while ensuring continuity of power supply even during grid outages.



Among its many positive features, we highlight the device's reliability, efficiency, and easy installation. The built-in WiFi module allows remote monitoring of the system. This Deye inverter offers excellent value for money.


Learn more about the Deye 20kW SG01HP3-EU-AM2 Hybrid HV 3-phase inverter!

What types of batteries are compatible with the inverter?



HV (High Voltage) hybrid inverters only work with batteries for which the manufacturer provides predefined BMS communication. This means that compatibility depends not only on the voltage range, but also on the communication protocol and software support.



The exact battery compatibility can be found in the manufacturer's lists, so it is always recommended to consult an expert when selecting the right battery. Using the wrong battery can lead to system malfunction or loss of warranty.


Can it be used in off-grid systems?



Yes, the SG01HP3-EU-AM2 inverter is also suitable for off-grid operation. In the event of a power outage, it can automatically switch to off-grid operation, ensuring a continuous power supply to connected consumers. The off-grid function offers a reliable solution even in places where power outages are frequent.


What protection features does it have?

The inverter has several built-in protection functions to ensure long-term reliability of the system. These include:

    Overload protection

    Short-circuit protection

    Overvoltage protection

    Battery over- and deep-discharge protection

    Temperature protection

    Islanding detection and protection

Is it possible to monitor the system remotely?



Yes, the Deye SG01HP3-EU-AM2 inverter has a factory-installed WiFi module that allows remote monitoring and control of the system via a smartphone app or web interface. In addition, optional LAN or 4G communication modules are also available.


What are the warranty terms for the inverter?



In Europe, a 10-year warranty applies to Deye inverters.
Are three-phase hybrid inverters capable of off-grid operation and phase asymmetry?

 Yes, three-phase hybrid inverters are capable of off-grid operation, meaning they can provide power even in the event of a grid outage when combined with battery storage. These inverters not only supply three phases, but are also capable of delivering 100% of their rated power in island mode.

In addition, most modern hybrid inverters are also capable of phase-symmetrical operation, meaning that they function properly even when the load on each phase varies. This is particularly important for residential and smaller industrial systems, where consumption is rarely distributed evenly.

It is important to note that this feature is only available in hybrid inverters – on-grid types are not capable of island operation or phase asymmetry management.
What certifications does the inverter have?

The Deye SG01HP3-EU-AM2 inverter has a number of international certifications, including:

    CE (Conformité Européenne)

    TÜV Rheinland certification

    VDE AR-N 4105 (grid connection standard in Germany)

    G98/G99 (British standards)

    EN50549-1 (European grid standard) These certifications ensure that the inverter meets the highest quality and safety standards.
