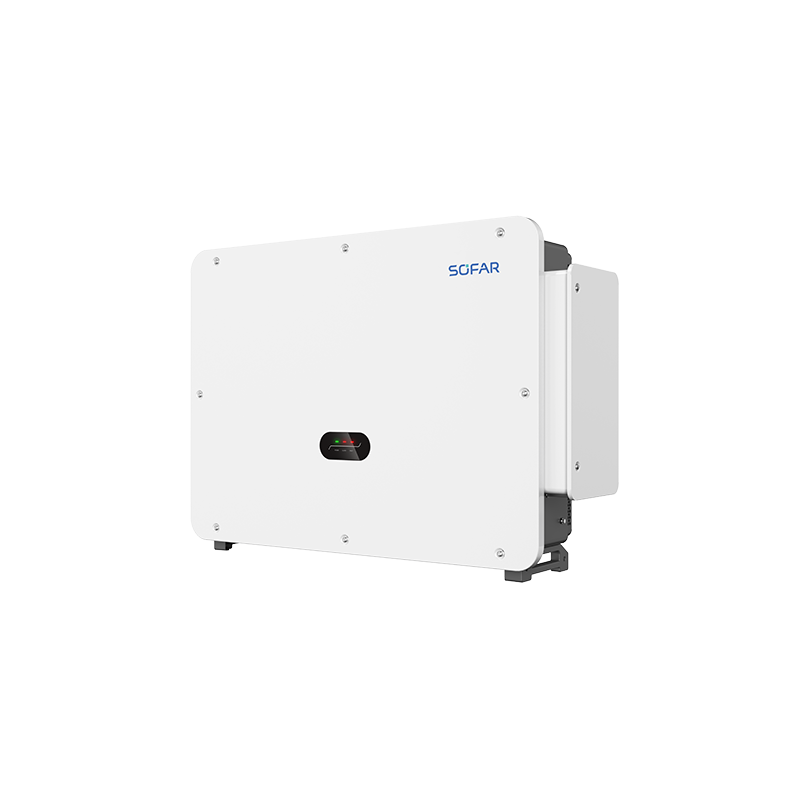

250KTLX0
  • 250KTLX0

250KTLX0

0161886
SOFAR
250ktlx0
€ 8.194,12
€ 8.194,12 € 6.772,00 € 8.194,12 € 6.772,00
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 6.772,00 Exclusief belasting
€ 8.194,12 Inclusief belasting
€ 1.422,12 BTW
€ 6.772,00 Exclusief belasting
€ 1.422,12 BTW
€ 8.194,12 Inclusief belasting
Aantal
Niet op voorraad (informeer naar de levertijd)

Vraag naar het product op WhatsApp
Omschrijving

Deze omvormer vereist een netspanning van 800 V.

De KTLX0-serie is het nieuwe systeembouwblok van Sofar voor grote C & I-toepassingen. De projectomvormers van 250, 330 en 350 kW zijn met hun 800 V AC-aansluitniveau en breed gelijkspanningsbereik, ontworpen voor hoogwaardige module-generaties en gebruik in grootschalige systemen. Geïntegreerde AC + DC Surge-bescherming, karakteristieke curve-meting en schaduwbeheer zijn standaardfuncties.

Productvoordelen:
? Brede MPPT-spanningsbereik voor commerciële toepassingen van 500 tot 1500 v
? Geïntegreerde AC / DC Type II Surge Protection
? U-I karakteristieke scanfunctie

Producteigenschappen:
? AC POWER: 250 kW
? AC-aansluiting: 800 V, 3-fase (3P-PE)
? Max. DC-systeemspanning: 1500 v
? Max. DC-ingangsstroom: 60 A per MPPT
? Aantal MPPTS: 6
? Aantal ingangen per MPPT: 4
? DC DISCONNECT-schakelaar: Geïntegreerd
? Interfaces: RS485, PBUS
? Connector: MC4-EVO2
? Beschermingsklasse: IP 66
? Koeling: actief
? Afmetingen: 828 x 1159 x 366 mm (HXWXD)
? Gewicht: 113,00 kg
Productdetails
SOFAR
0161886
